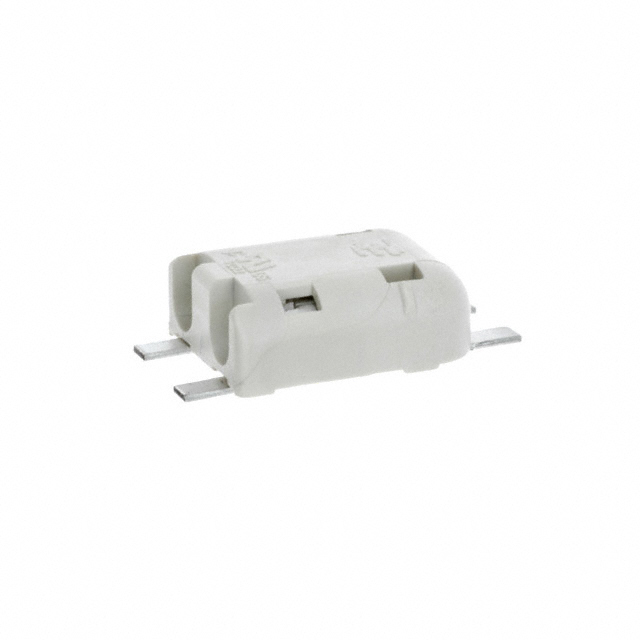

| Part Number | 1954097-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SSL RCPT 2POS 4MM SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Solid State Lighting Connectors |
|---|
| Other Related Documents |
SMT and Through-Hole Poke-In Conn Appl
|
|---|
| Design Resources |
Lighting Product Selector
|
|---|
| Featured Product |
Surface Mount Technology Poke-In Connectors
TE Conn-AMP - Solid State lighting
|
|---|
| 3D Model |
1954097-1.pdf
|
|---|
| PCN Design/Specification |
1954097 Drawing 24/Nov/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Style | Board to Cable/Wire |
|---|
| Connector Type | Receptacle, Poke-In Wire |
|---|
| Number of Positions | 2 |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Pitch | 0.157" (4.00mm) |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Housing Color | White |
|---|
| Wire Gauge | 18 AWG, 20 AWG, 22 AWG |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Tin |
|---|
| Housing Material | Liquid Crystal Polymer (LCP) |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Voltage Rating | 250V |
|---|
| Current Rating | 4A |
|---|
| Ingress Protection | - |
|---|
| Mating Cycles | - |
|---|
| Online Catalog | Poke-In Connectors |
|---|
| Other Names | A97618CT |
|---|
