| Part Number | 1375820-5 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

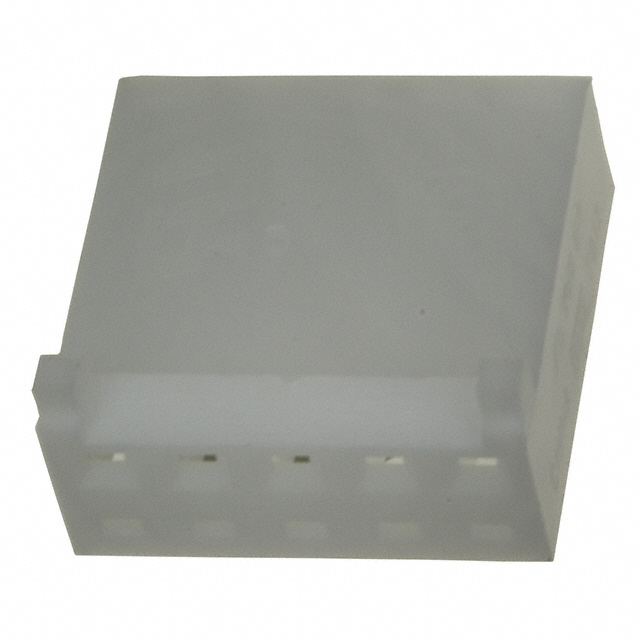

| Description | CONN RCPT HSNG 5POS CST-100 II |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | CST-100 II |
|---|
| Family | Rectangular Connectors - Housings |
|---|
| 3D Model |
1375820-5.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 5 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 1 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Contact Termination | Crimp |
|---|
| Fastening Type | Locking Ramp |
|---|
| Color | White |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | CST-100 II Series |
|---|
| Mating Products | A19471-ND - CONN HEADER VERT 5POS .100 TIN3-647166-5-ND - CONN HEADER 5POS VERT .100 TINA19432-ND - CONN HEADER VERT 5POS .100 TINA19481-ND - CONN HEADER RTANG 5POS .100 TINA30789-ND - CONN HEADER VERT 5POS .100 30AUA30797-ND - CONN HEADER RT/A 5POS .100 30AUA30919-ND - CONN HEADER VERT 5POS .100 TINA19341-ND - CONN HEADER RTANG 5POS .100 TINA30773-ND - CONN HEADER VERT 5POS .100 30AUA24935-ND - CONN HEADER VERT .100 5POS 30AUA19331-ND - CONN HEADER VERT 5POS .100 TINA30781-ND - CONN HEADER RT/A .100 5POS 30AUA114215-ND - CONN HEADER 5POS R/A .100 TINA19453-ND - CONN HEADER RTANG 5POS .100 TINA30911-ND - CONN HEADER RTANG 5POS .100 TIN644874-5-ND - CONN HEADER 5POS VERT .100 TIN3-647609-5-ND - CONN HEADER 5POS VERT .100 TIN3-641211-5-ND - CONN HEADER 5POS VERT .100 GOLD3-641212-5-ND - CONN HEADER 5POS R/A .100 GOLD644877-5-ND - CONN HEADER 5POS R/A .100 TIN641211-5-ND - CONN HEADER 5POS VERT .100 GOLDA24946-ND - CONN HEADER RT/A .100 5POS 30AUA23900-ND - CONN HEADER VERT .100 5POS 30AUA23913-ND - CONN HEADER RT/A .100 5POS 30AU644892-5-ND - CONN HEADER 5POS VERT .100 TINA19353-ND - CONN HEADER VERT 5POS .100 TINA19373-ND - CONN HEADER VERT 5POS .100 TINA19393-ND - CONN HEADER RTANG 5POS .100 TINA19413-ND - CONN HEADER RTANG 5POS .100 TIN647106-5-ND - CONN HEADER 5POS VERT .100 TINA114220-ND - CONN HEADER 5POS VERT .100 TIN647050-5-ND - CONN HEADER 5POS VERT .100 TIN |
|---|
| For Use With | 271-2145-ND - AC/DC CNVRTR 5V +/-12V 24V 750WRSC350DBB-CF-ND - AC/DC CNVRTR 5V 24V 2X12V 350W |
|---|
| Associated Product | A100455TR-ND - CONN SOCKET 22-26AWG GOLD CRIMPA100455CT-ND - CONN SOCKET 22-26AWG GOLD CRIMPA100453TR-ND - CONN SOCKET 22-26AWG TIN CRIMPA100453CT-ND - CONN SOCKET 22-26AWG TIN CRIMPA99620-ND - CONN SCKT 26-22AWG TIN CST100 IIA100454TR-ND - CONN SOCKET 22-26AWG GOLD CRIMPA100454CT-ND - CONN SOCKET 22-26AWG GOLD CRIMP1445336-2-ND - CONTACT CST-100 II 26-22AWG 15AU1445336-3-ND - CONTACT CST-100 II 26-22AWG 30AU |
|---|
| Other Names | 1375820-5-ND13758205A99616 |
|---|
