| Part Number | PHR-7 |
|---|
| Manufacturer | JST Sales America Inc. |
|---|

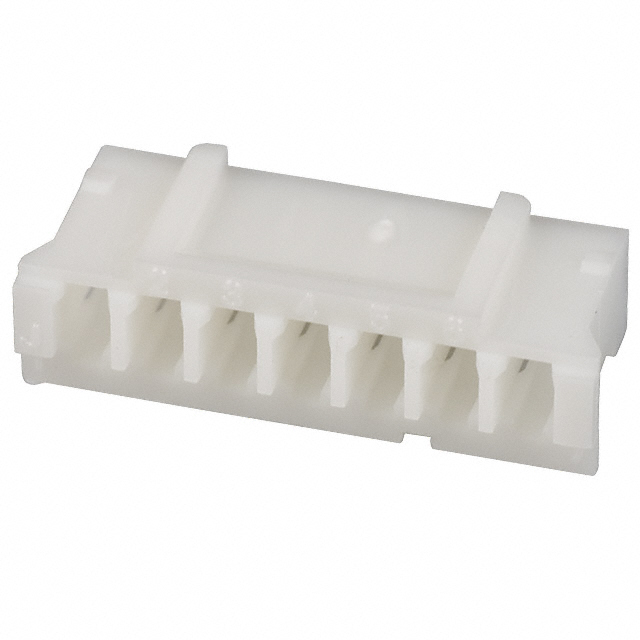

| Description | CONN HOUSING PH 7POS 2MM WHITE |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | PH |
|---|
| Family | Rectangular Connectors - Housings |
|---|
| HTML Datasheet |
PH Series Datasheet.html
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 7 |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 1 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Contact Termination | Crimp |
|---|
| Fastening Type | Detent Lock |
|---|
| Color | Natural |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | PH Series |
|---|
| Mating Products | 455-1709-ND - CONN HEADER PH TOP 7POS 2MM455-1754-2-ND - CONN HEADER PH SIDE 7POS 2MM SMD455-1754-1-ND - CONN HEADER PH SIDE 7POS 2MM SMD455-1754-6-ND - CONN HEADER PH SIDE 7POS 2MM SMD455-1739-2-ND - CONN HEADER PH TOP 7POS 2MM SMD455-1739-1-ND - CONN HEADER PH TOP 7POS 2MM SMD455-1739-6-ND - CONN HEADER PH TOP 7POS 2MM SMD455-1724-ND - CONN HEADER PH SIDE 7POS 2MM455-1225-ND - CONN HEADER PH SIDE 7POS 2MM455-1276-ND - CONN HEADER PH TOP 7POS 2MM455-1334-2-ND - CONN HEADER PH SIDE 7POS 2MM SMD455-1334-1-ND - CONN HEADER PH SIDE 7POS 2MM SMD455-1306-2-ND - CONN HEADER PH TOP 7POS 2MM SMD455-1306-1-ND - CONN HEADER PH TOP 7POS 2MM SMD |
|---|
| Associated Product | 455-2148-2-ND - CONN TERMINAL 28-24AWG TIN455-2148-1-ND - CONN TERMINAL 28-24AWG TIN455-1318-2-ND - CONN TERM CRIMP PH 28-32AWG TIN455-1318-1-ND - CONN TERM CRIMP PH 28-32AWG TIN455-1127-2-ND - CONN TERM CRIMP PH 24-30AWG455-1127-1-ND - CONN TERM CRIMP PH 24-30AWGSPH-002GW-P0.5L-ND - CONN TERM CRIMP PH GOLD 24-28AWG |
|---|
| Other Names | 455-1161PHR7 |
|---|
