| Part Number | 770680-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

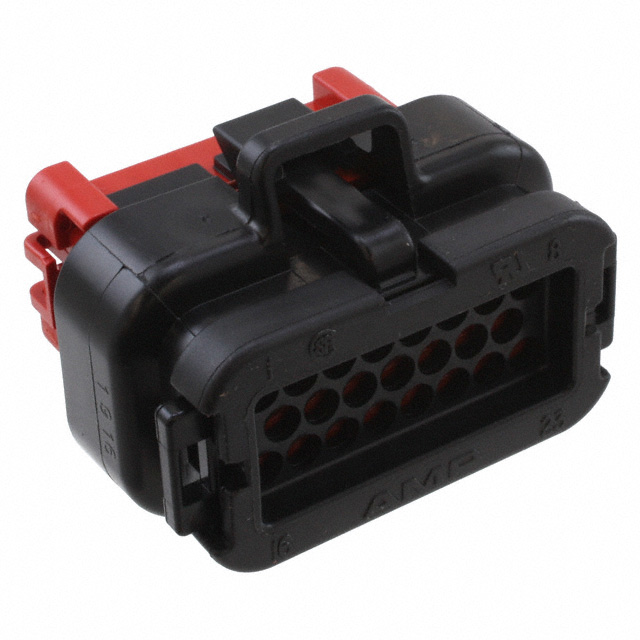

| Description | CONN PLUG ASSY 23POS SEALED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPSEAL |
|---|
| Family | Rectangular Connectors - Housings |
|---|
| 3D Model |
770680-1.pdf
|
|---|
| PCN Design/Specification |
770680 Seal 22/Dec/2014
2293782 Drawing 19/Oct/2015
2293782 Drawing 02/Dec/2015
|
|---|
| PCN Other |
770680 Seal Mold 11/Aug/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Plug |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 23 |
|---|
| Pitch | - |
|---|
| Number of Rows | 3 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Contact Termination | Crimp |
|---|
| Fastening Type | Latch Lock |
|---|
| Color | Black |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | AMPSEAL Series |
|---|
| Associated Product | A106370-ND - CONTACT, AMPSEAL SN/LPA107002-ND - CONN RECEPT CRIMP GOLD AMPSEAL770520-1-ND - CONN RECEPT 16-20AWG TIN CRIMP770520-3-ND - CONTACT, AMPSEAL AUPL |
|---|
| Other Names | 770680-1-ND7706801A105101 |
|---|
