| Part Number | 338070-8 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

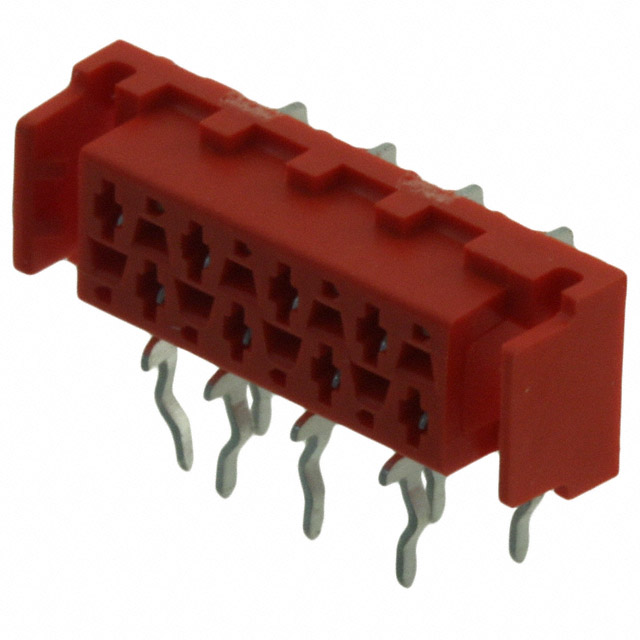

| Description | CONN FMALE-ON-BRD 8POS R/A T/H |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Micro-MaTch |
|---|
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
|---|
| Featured Product |
Micro-MaTch Connector Series
|
|---|
| 3D Model |
338070-8.pdf
|
|---|
| PCN Design/Specification |
Multiple Parts Adhesive Tape Width 29/June/2014
|
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 8 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | 0.100" (2.54mm) |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Contact Finish | Tin |
|---|
| Contact Finish Thickness | - |
|---|
| Color | Red |
|---|
| Online Catalog | Micro-MaTch Series |
|---|
| Mating Products | A120812TR-ND - CONN HEADER 8POS DL VERT SMDA120812CT-ND - CONN HEADER 8POS DL VERT SMD |
|---|
| Other Names | 3380708A99484TR |
|---|
