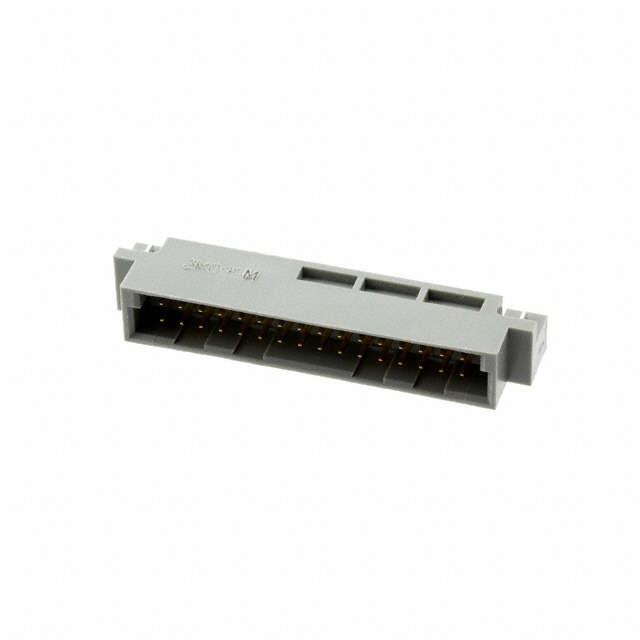

| Part Number | PCN10EA-32P-2.54DS(72) |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | CONN HEADER 32POS DUAL R/A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | PCN10 |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| Standard Package | 20 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Header, Male Pins |
|---|
| Number of Positions | 32 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Style | B |
|---|
| Level, Class | - |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Features | Board Lock |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 8μin (0.20μm) |
|---|
| Operating Temperature | -55°C ~ 85°C |
|---|
| Current Rating | 2A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polybutylene Terephthalate (PBT) |
|---|
| Online Catalog | PCN10 and PCN13 Series |
|---|
| Other Names | H124255PCN10EA-32P-2.54DS(72)-ND |
|---|
