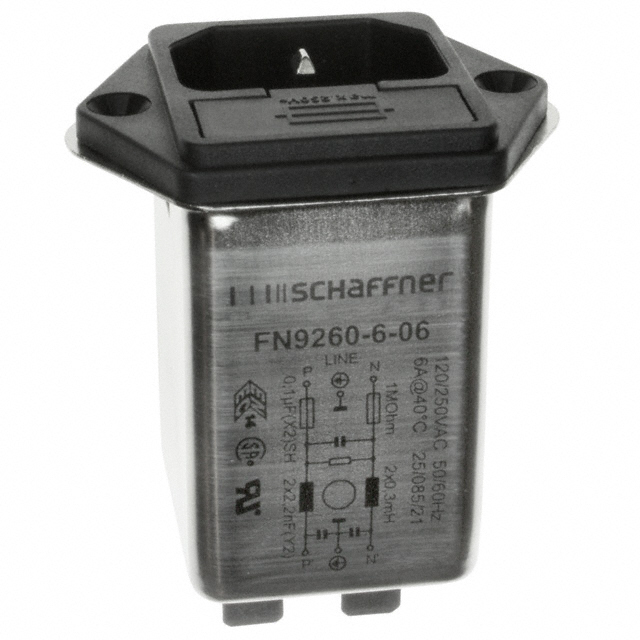

| Part Number | FN9260-6-06 |
|---|
| Manufacturer | Schaffner EMC Inc. |
|---|
| Description | MOD PWR ENTRY INLET W/FUSE 6A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | FN 9260 |
|---|
| Family | Power Entry Connectors - Inlets, Outlets, Modules |
|---|
| Product Training Modules |
FN9260 Series Introduction
|
|---|
| Featured Product |
FN9260 Series Power Entry Modules
|
|---|
| Standard Package | 20 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | IEC 320-C14 |
|---|
| Connector Type | Receptacle, Male Blades - Module |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 6A |
|---|
| Voltage - UL | 250VAC |
|---|
| Filter Type | Filtered (EMI, RFI) - Commercial |
|---|
| Fuse | Yes |
|---|
| Number of Positions | 3 |
|---|
| Mounting Type | Panel Mount, Flange |
|---|
| Termination | Quick Connect - 0.250" (6.3mm) |
|---|
| Switch Features | - |
|---|
| Features | - |
|---|
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
|---|
| Panel Cutout Dimensions | Rectangular - 29.00mm x 33.00mm |
|---|
| Panel Thickness | - |
|---|
| Material Flammability Rating | UL94 V-2 |
|---|
| Ingress Protection | IP40 |
|---|
| Approvals | CQC, CSA, ENEC, UL |
|---|
| Online Catalog | FN 9260 Series |
|---|
| Associated Product | 817-1656-ND - LOCKING LINE CORD 3 COND US 6''817-1657-ND - LOCKING LINE CORD 3 COND US 6''817-1655-ND - LOCKING LINE CORD 3 COND EU 2M817-1654-ND - LOCKING LINE CORD 3 COND UK 2M |
|---|
| Other Names | 290-555800499817-1488FN9260 - 6 -06FN9260606 |
|---|
