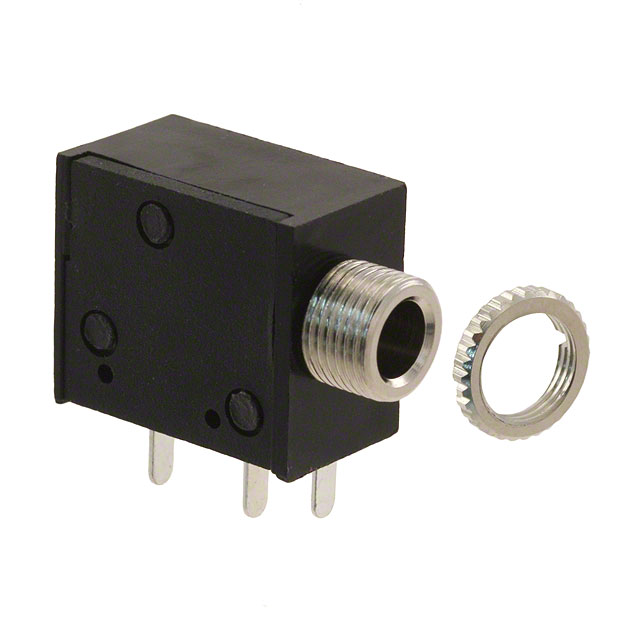

| Part Number | SJ1-3533 |
|---|
| Manufacturer | CUI Inc. |
|---|
| Description | CONN JACK STEREO R/A 3PIN 3.5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Barrel - Audio Connectors |
|---|
| 3D Model |
SJ1-3533
|
|---|
| PCN Design/Specification |
Multiple Devices Plating 19/Sep/2014
|
|---|
| Standard Package | 200 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Phone Jack |
|---|
| Gender | Female |
|---|
| Signal Lines | Stereo |
|---|
| Plug/Mating Plug Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
|---|
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
|---|
| Internal Switch(s) | Does Not Contain Switch |
|---|
| Mounting Type | Panel Mount, Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Shielding | Unshielded |
|---|
| Features | Mounting Hardware, Thread Lock |
|---|
| Color - Contact | Silver |
|---|
| Contact Material | Brass |
|---|
| Contact Material - Plating | Tin |
|---|
| Housing Material | Plastic |
|---|
| Housing Color | Black |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Voltage - Rated | 12VDC |
|---|
| Current Rating | 1A |
|---|
| Online Catalog | CUI |
|---|
| Associated Product | CP-2416-ND - REPLACEMENT 3.5MM NUT |
|---|
| Other Names | 045-0981RCP1-3533SJ13533 |
|---|
