| Part Number | 09062486835 |
|---|
| Manufacturer | Harting |
|---|

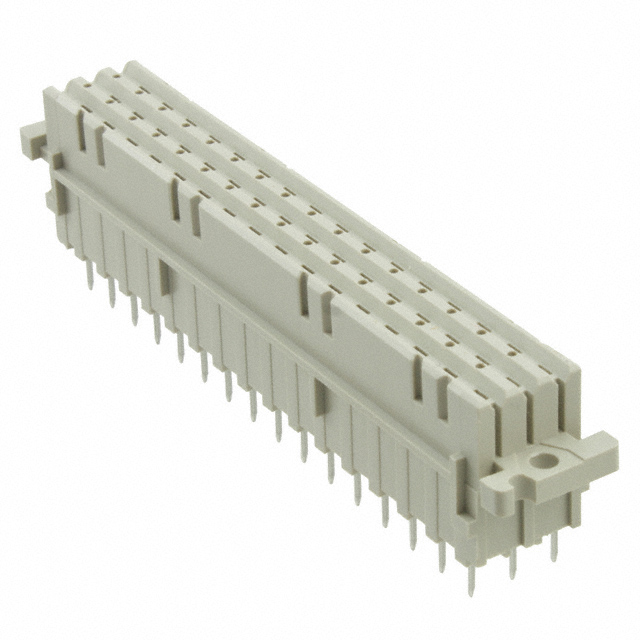

| Description | DIN-POWER F048FS-4,5C1-2 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | DIN 41612 |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
F straight female 48 pole.stp
F straight female 48 pole.igs
F straight female 48 pole.wrl
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 48 (Power) |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.200" (5.08mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | F |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Solder |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | - |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Thermoplastic, Glass Filled |
|---|
| Online Catalog | DIN 41612 Series |
|---|
| Mating Products | 1195-1306-ND - DIN-POWER F048MS-3,0C1-21195-1304-ND - DIN-POWER F048MS-3,0C1-11195-1295-ND - DIN-POWER F48MW-C1-11195-1338-ND - DIN-POWER F048MS-3,0C1-2-V1-CLIP1195-1339-ND - DIN-POWER F048MR-3,0C1-2-CLIP1195-1307-ND - DIN-POWER F048MS-3,0C1-2-V11195-1305-ND - DIN-POWER F048MS-3,0C1-1-V481195-1308-N |
|---|
| Other Names | 1195-13349062486835 |
|---|
