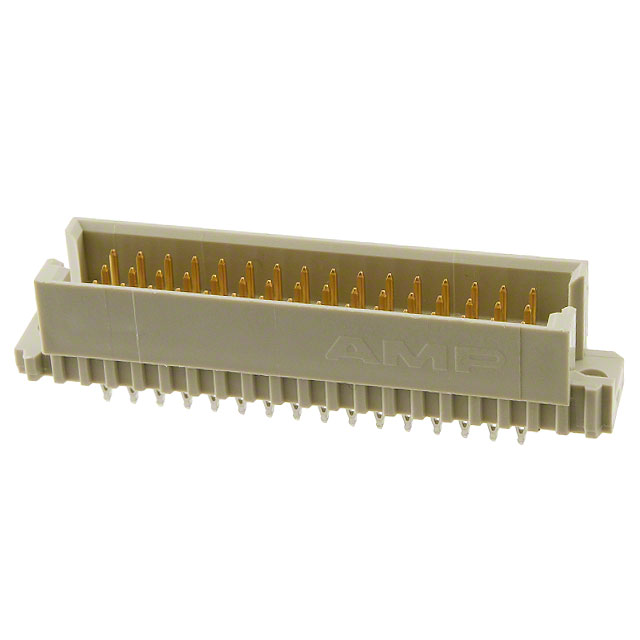

| Part Number | 5148472-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | PIN,EUROCARD,TYPE R/2 48 POS |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurocard |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
5148472-4.pdf
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 48 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | 1/2 R |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | - |
|---|
| Material - Insulation | Polymer Thermoplastic, Glass Filled |
|---|
| Associated Product | 174376-1-ND - IEC DUST COVER |
|---|
