| Part Number | 535059-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

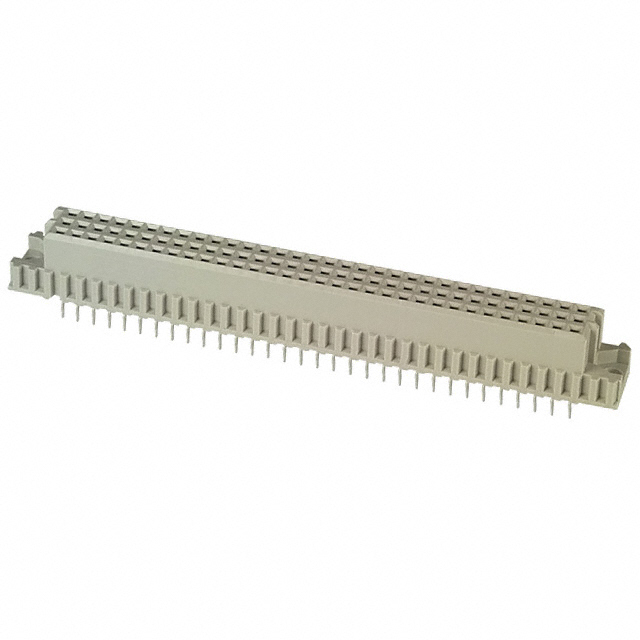

| Description | CONN DIN RECEPT 64POS VERT PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurocard |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
535059-4.pdf
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 96 |
|---|
| Number of Positions Loaded | 64 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | C |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polyester, Glass Filled |
|---|
| Online Catalog | Eurocard Series |
|---|
| Mating Products | A1261-ND - CONN DIN PLUG 64POS VERT PCBA1255-ND - CONN DIN PLUG 64POS RT ANG PCBA32811-ND - CONN DIN PLUG 64POS RT ANG PCBA32299-ND - CONN DIN PLUG 64POS RT ANG PCBA32822-ND - CONN DIN PLUG 64POS VERT PCBA32823-ND - CONN DIN PLUG 64POS VERT PCBA32813-ND - CONN DIN PLUG 64POS RT ANG PCBA32812-ND - CO |
|---|
| Other Names | 535059-4-ND5350594A29029 |
|---|
