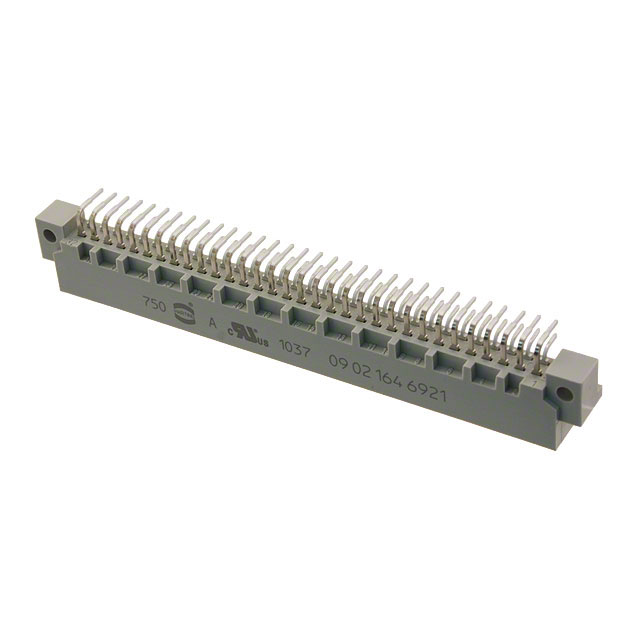

| Part Number | 09021646921 |
|---|
| Manufacturer | Harting |
|---|
| Description | DIN-SIGNAL B064POS MS-3,0C1-2 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | DIN 41612 |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
B angled male 64 pole.stp
B angled male 64 pole.igs
B angled male 64 pole.wrl
|
|---|
| Standard Package | 130 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Header, Male Pins |
|---|
| Number of Positions | 64 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Style | B |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Features | - |
|---|
| Contact Finish | - |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | - |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Thermoplastic, Glass Filled |
|---|
| Online Catalog | DIN 41612 Series |
|---|
| Mating Products | 1195-1102-ND - DIN-SIGNAL B064POS FS-4,5C1-21195-1104-ND - DIN-SIGNAL B064POS FP-4,5C1-21195-1099-ND - DIN-SIGNAL B064POS FW-13C1-21195-1103-ND - DIN-SIGNAL B064POS FD-C1-21195-1106-ND - DIN-SIGNAL B064POS FS-4,5C1-21195-1101-ND - DIN-SIGNAL B064POS FS-2,9C1-21195-1100-ND - DIN-SIGNAL B064POS FL-5,2 |
|---|
| Other Names | 1195-10949021646921 |
|---|
