| Part Number | 86093968813755V1LF |
|---|
| Manufacturer | FCI |
|---|

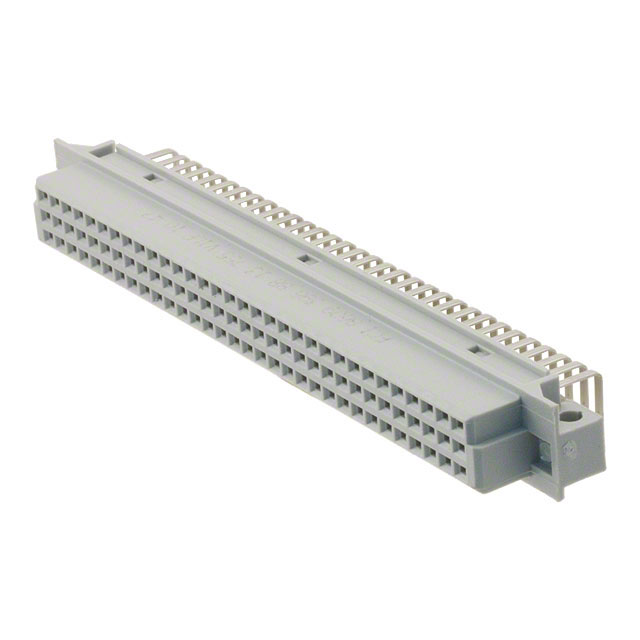

| Description | CONN DIN RECEPT 96POS R/A PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 8609 |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| PCN Design/Specification |
8609 Series Plating Change 24/Mar/2009
|
|---|
| Standard Package | 16 |
|---|
| Packaging | Tray |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 96 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | R |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | 1.5A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polyester Thermoplastic |
|---|
| Online Catalog | 8609 Series |
|---|
| Mating Products | 86093967894745E1LF-ND - DIN STRAIGHT HEADER F86093967814745E1LF-ND - DIN STRAIGHT HEADER F86093960894755E1LF-ND - DIN STRAIGHT HEADER F86093967894755E1LF-ND - DIN STRAIGHT HEADER F86093967814755E1LF-ND - DIN STRAIGHT HEADER F86093967896745LF-ND - DIN STRAIGHT HEADER F86093967891755E1LF-ND - DIN STRA |
|---|
| Other Names | 609-2116 |
|---|
