| Part Number | 5650947-5 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

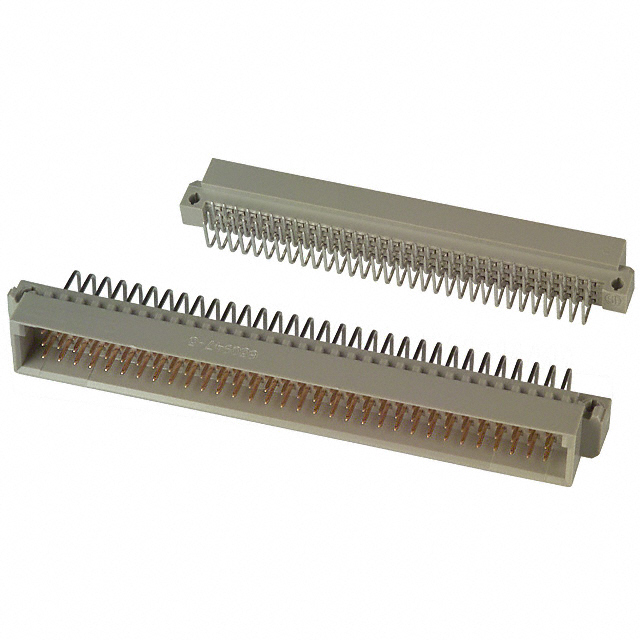

| Description | CONN DIN PLUG 96POS RT ANG PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurocard |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
5650947-5.pdf
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 96 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | C |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polymer Thermoplastic, Glass Filled |
|---|
| Online Catalog | Eurocard Series |
|---|
| Mating Products | A32842-ND - CONN DIN RECEPT 96POS VERT PCBA32862-ND - CONN DIN RECEPT 96POS RT ANG PCBA29051-ND - CONN DIN RECEPT 96POS VERT PCBA29052-ND - CONN RCPT EUROCRD 96POS 13MM PCBA32841-ND - CONN DIN RECEPT 96POS VERT PCBA32840-ND - CONN DIN RECEPT 96POS VERT PCBA1258-ND - CONN DIN RECEPT 96POS VERT PCBA32 |
|---|
| Other Names | 56509475A32300 |
|---|
