| Part Number | 5172070-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

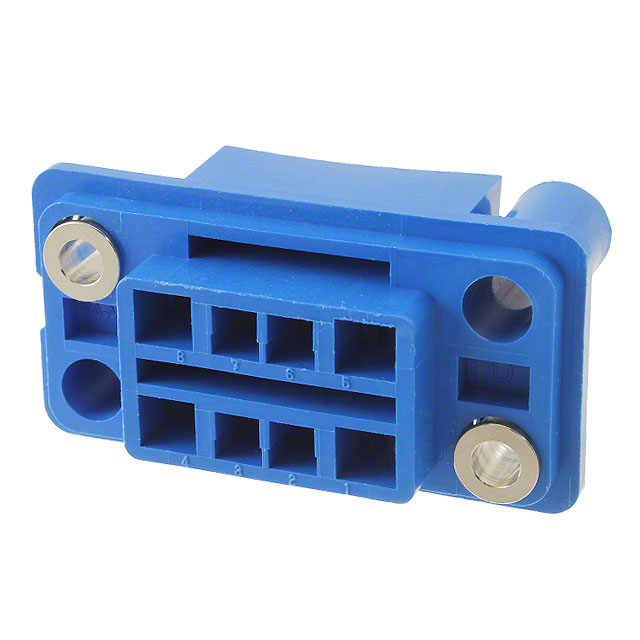

| Description | DRAWER CONN FMALE HSG ASSY 8P |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Blindmate |
|---|
| Family | Backplane Connectors - Housings |
|---|
| 3D Model |
5172070-3.pdf
|
|---|
| Standard Package | 180 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Housing for Female Sockets |
|---|
| Connector Style | Drawer |
|---|
| Number of Positions | 8 (4 + 4 Power) |
|---|
| Pitch | 0.260" (6.60mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Panel Mount |
|---|
| Connector Usage | Receptacle |
|---|
| Features | Guide Pin |
|---|
| Color | Blue |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | Blindmate Series |
|---|
| Mating Products | A112653-ND - DRAWER CONN 8P MALE |
|---|
| Associated Product | A116105TR-ND - CONN CONTACT 20-24AWG GOLD CRIMP170313-1-ND - CONN HERMAPHRODITIC 24-20AWG170485-1-ND - CONN HERMAPHRODITIC 20-16AWGA100470TR-ND - CONN CONTACT 18-14AWG CRIMP GOLDA100470CT-ND - CONN CONTACT 18-14AWG CRIMP GOLDA111046TR-ND - CONTACT FOR DRAWER CONNECTORA105197-ND - CONN CONTACT 18-14A |
|---|
| Other Names | 5172070-3-NDA113796 |
|---|
