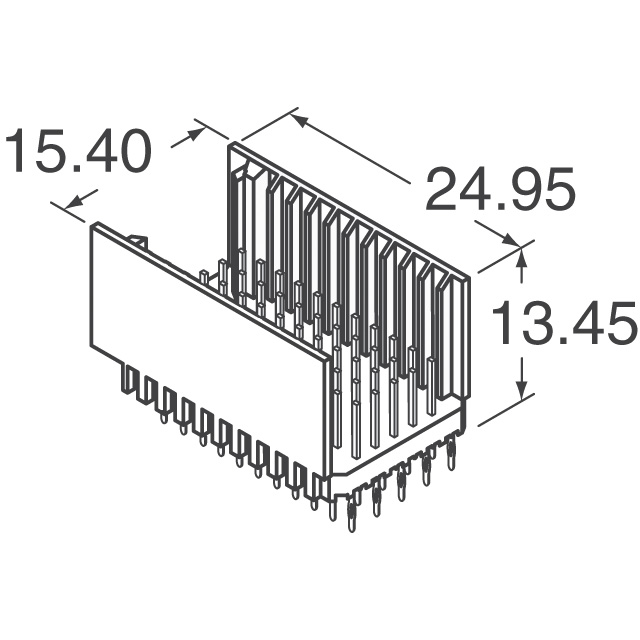

| Part Number | HM2P09PD5110N9LF |
|---|
| Manufacturer | FCI |
|---|
| Description | CONN HEADER 55POS TYPE C VERT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Millipacs? |
|---|
| Family | Backplane Connectors - Hard Metric, Standard |
|---|
| PCN Design/Specification |
HM2P, HM2J Plating 20/Oct/2011
HM2 Series Copper Alloy 22/Jun/2013
|
|---|
| PCN Packaging |
Millipacs UL/CSA marking 01/July/2009
Millipacs Devices 16/Dec/2010
|
|---|
| Standard Package | 96 |
|---|
| Packaging | Tray |
|---|
| Connector Type | Header, Male Pins |
|---|
| Connector Style | C 11 |
|---|
| Number of Positions | 55 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 5 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Connector Usage | CompactPCI |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Current Rating | 1.5A |
|---|
| Voltage Rating | 750V |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Features | Board Guide |
|---|
| Online Catalog | Millipacs? Series |
|---|
| Mating Products | 609-2145-ND - CONN RECEPT 55POS TYPE C R/A609-2141-ND - CONN RECEPT 55POS TYPE C R/AHM2R03PA5100N9-ND - CONN RECEPT 55POS TYPE C R/A |
|---|
| Other Names | 609-2131 |
|---|
