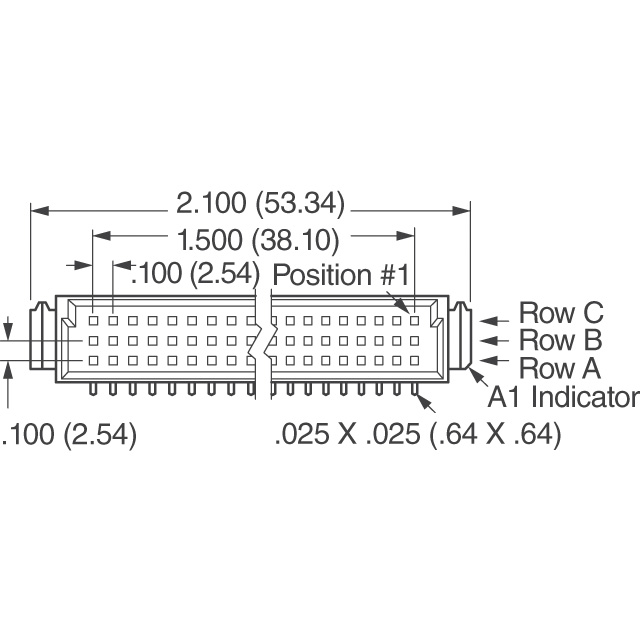

| Part Number | 9-1393644-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN PLUG 64POS R/A SOLDER T/H |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurocard |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
9-1393644-4.pdf
|
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 96 |
|---|
| Number of Positions Loaded | 64 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | C |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Features | - |
|---|
| Contact Finish | Gold or Gold-Palladium |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
|---|
| Online Catalog | Eurocard Series |
|---|
| Mating Products | A32837-ND - CONN DIN RECEPT 64POS VERT PCBA29021-ND - CONN DIN RECEPT 64POS VERT PCB5650458-5-ND - CONN RECEPT 64 POS VERT DIN PCBA1259-ND - CONN DIN RECEPT 64POS VERT PCBA32839-ND - CONN DIN RECEPT 64POS VERT PCB650458-5-ND - CONN RECEPT 64 POS VERT DIN PCBA32852-ND - CONN DIN RECEPT 64POS VERT PCB |
|---|
| For Use With | A32838-ND - CONN DIN RECEPT 64POS VERT PCB |
|---|
| Other Names | 913936444A99507 |
|---|
