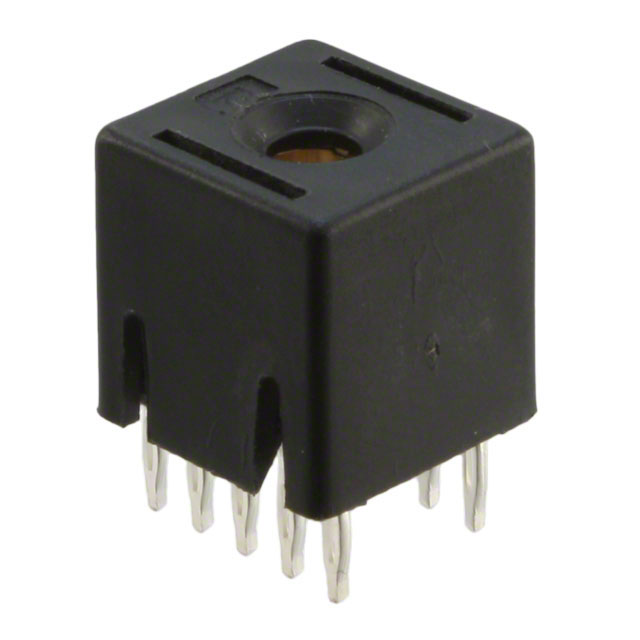

| Part Number | 6643269-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET 1POS W/COMPLIANT PIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | ICCON, Elcon |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Featured Product |
Elcon Power Products
|
|---|
| 3D Model |
6643269-1.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Connector Usage | - |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | Power |
|---|
| Number of Positions | 1 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | - |
|---|
| Number of Rows | - |
|---|
| Number of Columns | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | 1 Power |
|---|
| Features | - |
|---|
| Contact Finish | Silver |
|---|
| Contact Finish Thickness | 200μin (5.08μm) |
|---|
| Color | Black |
|---|
| Current Rating | 35A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Voltage Rating | 250V |
|---|
| Online Catalog | Elcon ICCON Series |
|---|
| Mating Products | A114320-ND - ICCON,SKT,ASSYA114321-ND - ICCON,PIN,ASSY |
|---|
| Other Names | 6643269-1-ND66432691A101285 |
|---|
