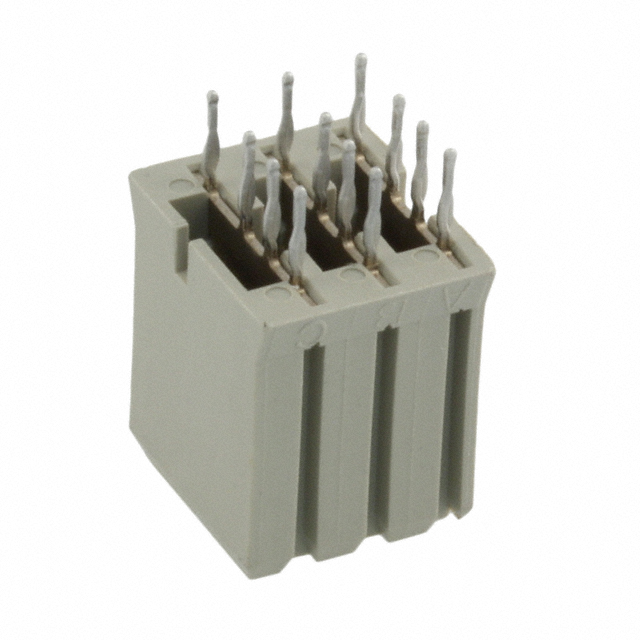

| Part Number | 5-5223955-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN RCPT 3POS VERT GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | UPM (Universal Power Modules) |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Product Training Modules |
Universal Power Modules
|
|---|
| 3D Model |
5-5223955-2.pdf
|
|---|
| Standard Package | 60 |
|---|
| Packaging | Tube |
|---|
| Connector Usage | Backplane |
|---|
| Connector Type | Receptacle, Female Blade Sockets |
|---|
| Connector Style | Blade Power |
|---|
| Number of Positions | 3 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | - |
|---|
| Number of Rows | 1 |
|---|
| Number of Columns | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | 3 Power |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 3μin (0.08μm) |
|---|
| Color | Gray |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Voltage Rating | 250V |
|---|
| Mating Products | A101857-ND - CONN PLUG 3POS BLADE RT ANG GOLD5-5223974-1-ND - UPM PIN ASSY, HI CURRENT |
|---|
| Other Names | 552239552 |
|---|
