| Part Number | 6469169-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

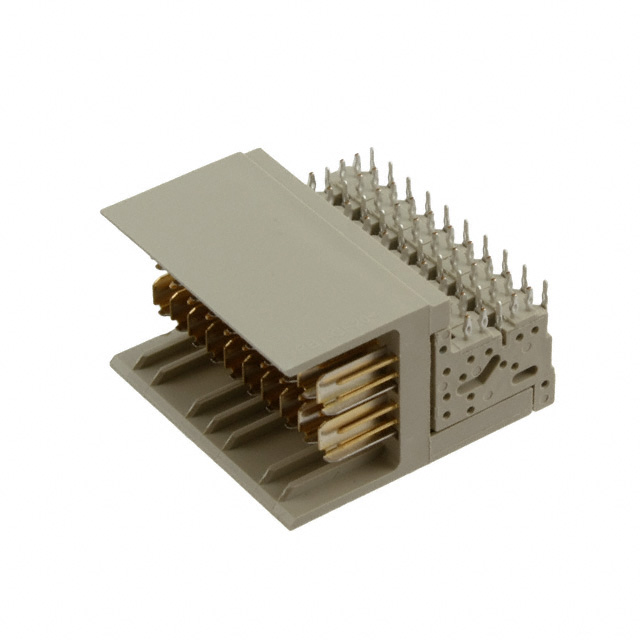

| Description | CONN HEADER 40POS R/A HM-ZD TIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Z-PACK HM-Zd |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Product Training Modules |
Z-PACK HM-Zd / HM-Zd Plus Products Overview
|
|---|
| 3D Model |
6469169-1.pdf
|
|---|
| PCN Design/Specification |
6469169 Drawing 18/Sep/2014
|
|---|
| Standard Package | 20 |
|---|
| Packaging | Tube |
|---|
| Connector Usage | Backplane |
|---|
| Connector Type | Header, Male Pins and Blades |
|---|
| Connector Style | High Speed |
|---|
| Number of Positions | 60 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.098" (2.50mm) |
|---|
| Number of Rows | 4 |
|---|
| Number of Columns | 10 |
|---|
| Mounting Type | Board Edge, Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | 40 Signal, 20 Ground |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | - |
|---|
| Current Rating | 0.700A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -65°C ~ 105°C |
|---|
| Voltage Rating | 250V |
|---|
| Mating Products | 6469028-1-ND - CONN RCPT 40POS DUAL R/A HM-ZDA114846-ND - CONN RCPT 40POS 2ROW RT ANG T/H |
|---|
| Other Names | 64691691 |
|---|
