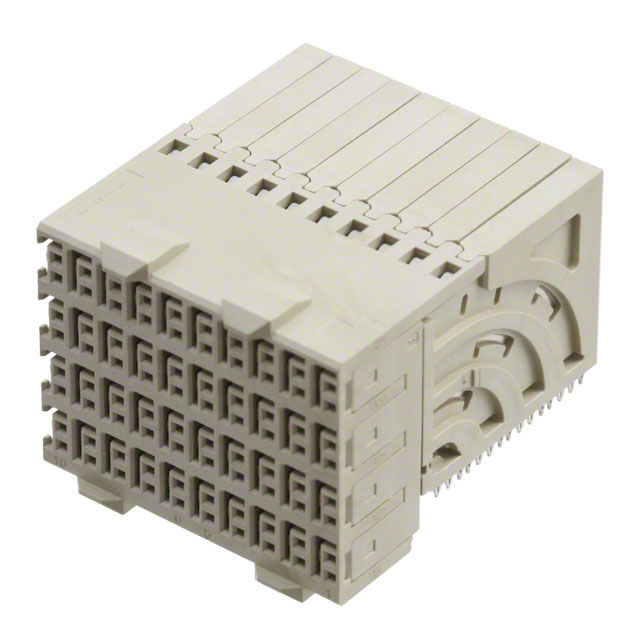

| Part Number | 2065657-1 |
|---|
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
|---|
| Description | CONN RCPT 80POS 8ROW RT ANG HM-Z |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Z-PACK HM-Zd |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Product Training Modules |
Z-PACK HM-Zd / HM-Zd Plus Products Overview
|
|---|
| Featured Product |
Z-Pack HM-Zd Plus
|
|---|
| PCN Design/Specification |
Multiple Devices Design 10/Mar/2014
Multiple Devices Front Housing 13/Oct/2015
|
|---|
| Standard Package | 20 |
|---|
| Packaging | Tube |
|---|
| Connector Usage | Backplane |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | High Speed |
|---|
| Number of Positions | 120 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.098" (2.50mm) |
|---|
| Number of Rows | 8 |
|---|
| Number of Columns | 10 |
|---|
| Mounting Type | Board Edge, Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | 80 Single Signal, 40 Ground |
|---|
| Features | Shielded |
|---|
| Contact Finish | - |
|---|
| Contact Finish Thickness | - |
|---|
| Color | - |
|---|
| Current Rating | 0.600A |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | -65°C ~ 105°C |
|---|
| Voltage Rating | 250V |
|---|
| Online Catalog | Z-PACK HM-Zd Series |
|---|
| Mating Products | 6469002-1-ND - CONN HEADER 80POS 8ROW VERT HM |
|---|
| Other Names | 20656571A104048 |
|---|
