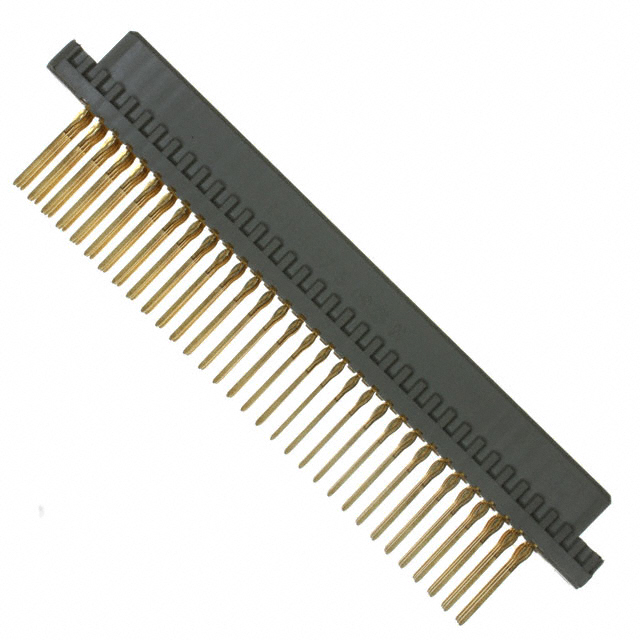

| Part Number | 1-148057-5 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN RCPT EUROCRD 96POS 13MM PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Eurocard |
|---|
| Family | Backplane Connectors - DIN 41612 |
|---|
| 3D Model |
1-148057-5.pdf
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 96 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 3 |
|---|
| Style | C |
|---|
| Level, Class | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Material - Insulation | Polyester, Glass Filled |
|---|
| Mating Products | A32815-ND - CONN DIN PLUG 96POS RT ANG PCBA32825-ND - CONN DIN PLUG 96POS VERT PCBA1254-ND - CONN DIN PLUG 96POS RT ANG PCBA32816-ND - CONN DIN PLUG 96POS RT ANG PCBA32824-ND - CONN DIN PLUG 96POS VERT PCBA99508-ND - CONN PLUG 96POS R/A SOLDER T/HA1279-ND - CONN DIN PLUG 96POS RT ANG PCBA1260-ND - C |
|---|
| Other Names | 1-148057-5-ND11480575A29052 |
|---|
