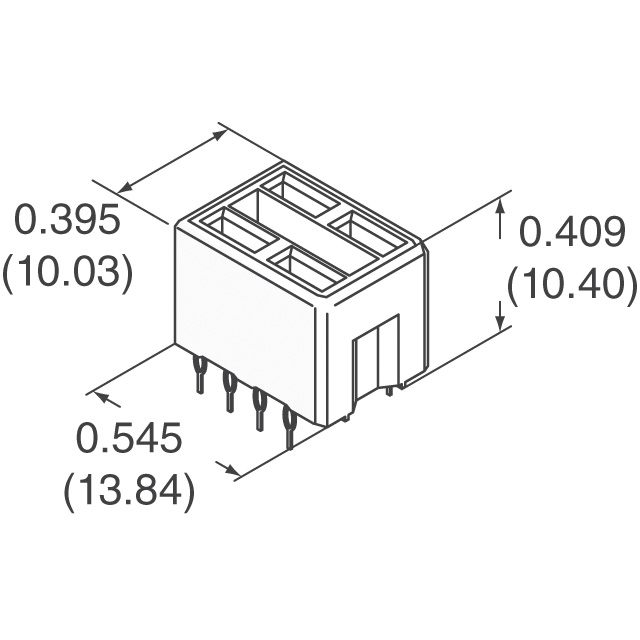

| Part Number | 10028916-4555P00LF |
|---|
| Manufacturer | FCI |
|---|
| Description | CONN RECEPT POWER 4POS VERT PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Airmax VS? |
|---|
| Family | Backplane Connectors - Specialized |
|---|
| Product Training Modules |
Airmax
|
|---|
| Featured Product |
AirMax VS VS2 VSe Connectors
|
|---|
| PCN Assembly/Origin |
Airmax Power 2x2 Vertical Receptacle 07/Aug/2015
|
|---|
| Standard Package | 60 |
|---|
| Packaging | Bulk |
|---|
| Connector Usage | - |
|---|
| Connector Type | Receptacle, Female Blade Sockets |
|---|
| Connector Style | Blade Power |
|---|
| Number of Positions | 4 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | - |
|---|
| Number of Rows | 2 |
|---|
| Number of Columns | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit |
|---|
| Contact Layout, Typical | 4 Power |
|---|
| Features | Board Guide |
|---|
| Contact Finish | Gold or Gold, GXT? |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Black |
|---|
| Current Rating | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Operating Temperature | - |
|---|
| Voltage Rating | - |
|---|
| Online Catalog | Airmax VS? Series |
|---|
| Mating Products | 609-2091-ND - CONN HEADER PWR 4POS 2MM R/A PCB609-4620-ND - POWER 2X2 |
|---|
| Other Names | 100289164555P00LF609-2090 |
|---|
