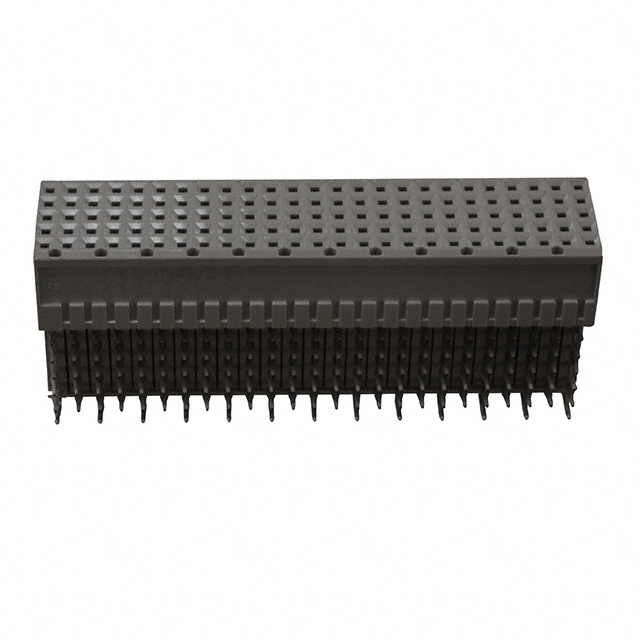

| Part Number | 5352069-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN RCPT HM 125POS RT ANG 2MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Z-PACK |
|---|
| Family | Backplane Connectors - Hard Metric, Standard |
|---|
| 3D Model |
5352069-1.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 11 |
|---|
| Packaging | Tube |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Connector Style | B 25 |
|---|
| Number of Positions | 125 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 5 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Press-Fit |
|---|
| Connector Usage | CompactPCI |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Current Rating | 1.5A |
|---|
| Voltage Rating | 500V |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Features | Upper Shield |
|---|
| Online Catalog | Z-Pack Series |
|---|
| Mating Products | A97849-ND - CONN HEADER 175POS VERT 2MMA97854-ND - CONN HEADER 175POS VERT 2MM5188256-1-ND - CONN 2MM HM HDR 175POS STR GOLD |
|---|
| Other Names | 5352069-1-ND53520691A97858 |
|---|
