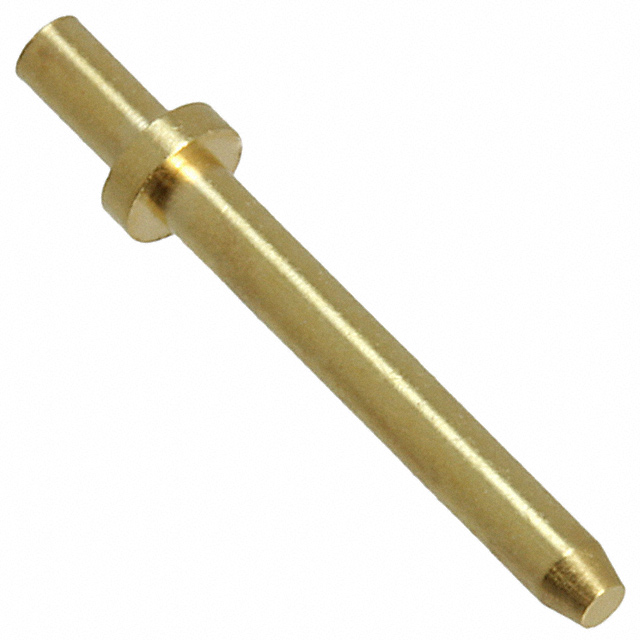

| Part Number | H2173-05 |
|---|
| Manufacturer | Harwin Inc. |
|---|
| Description | CONN PC PIN CIRC 0.041DIA GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - PC Pin, Single Post Connectors |
|---|
| Product Training Modules |
Spacers, Terminals, and PCB Sockets
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | PC Pin |
|---|
| Terminal Style | Single End |
|---|
| Pin Size - Above Flange | 0.041" (1.04mm) Dia |
|---|
| Pin Size - Below Flange | 0.041" (1.04mm) Dia |
|---|
| Length Above Flange | 0.300" (7.62mm) |
|---|
| Length Below Flange | 0.082" (2.08mm) |
|---|
| Length - Overall | 0.402" (10.20mm) |
|---|
| Flange Diameter | 0.070" (1.77mm) |
|---|
| Mounting Hole Diameter | 0.041" ~ 0.045" (1.04mm ~ 1.14mm) |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Swage |
|---|
| Insulation | Non-Insulated |
|---|
| Board Thickness | 0.063" (1.60mm) |
|---|
| Contact Material | Brass |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Material - Insulation | - |
|---|
| Insulation Color | - |
|---|
| Online Catalog | PC Pins - Harwin Inc |
|---|
| Other Names | 952-1871H217305 |
|---|
