| Part Number | 1723292 |
|---|
| Manufacturer | Phoenix Contact |
|---|

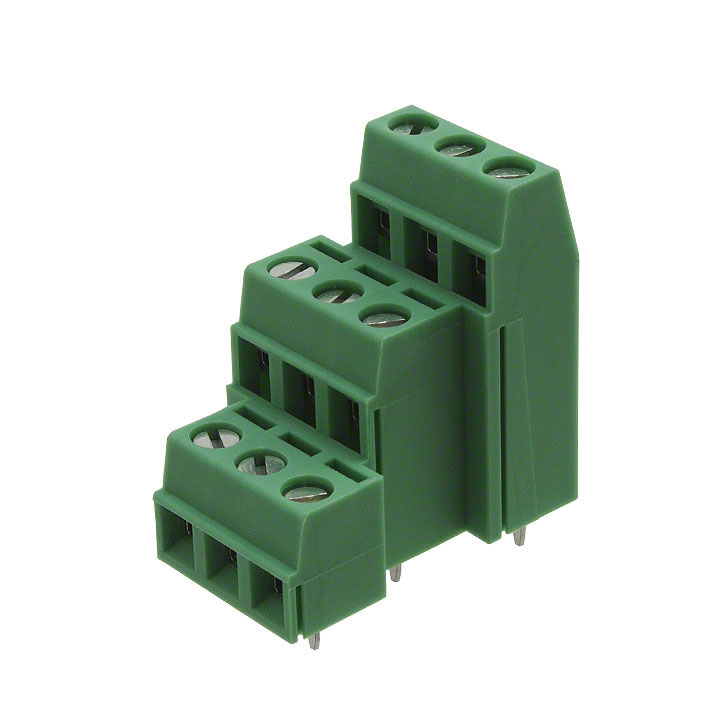

| Description | TERM BLOCK 3-LVL 3POS 5.08MM GRN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | COMBICON MK3DSN |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| PCN Packaging |
Multiple Devices 01/Jul/2013
|
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 3 |
|---|
| Positions Per Level | 3 |
|---|
| Pitch | 0.200" (5.08mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 10A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 14-30 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Rising Cage Clamp |
|---|
| Features | Interlocking (Side) |
|---|
| Color | Green |
|---|
| Operating Temperature | - |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Contact Material - Plating | - |
|---|
| Clamp Material - Plating | - |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
|---|
| Screw Thread | M3 |
|---|
| Online Catalog | COMBICON MK3DSN Series |
|---|
| Other Names | 1723292-ND277-6319MK3DSN1,5/3-5,08 |
|---|
