| Part Number | 1-480424-0 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

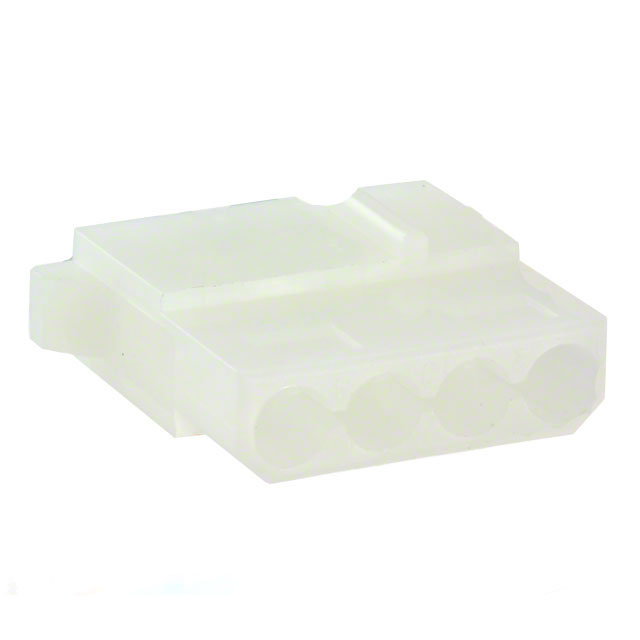

| Description | CONN PLUG 4 POS MATE-N-LOK |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Commercial MATE-N-LOK |
|---|
| Family | Rectangular Connectors - Housings |
|---|
| 3D Model |
1-480424-0.pdf
|
|---|
| Standard Package | 4,000 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Plug |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 4 |
|---|
| Pitch | 0.200" (5.08mm) |
|---|
| Number of Rows | 1 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Contact Termination | Crimp |
|---|
| Fastening Type | Detent Lock |
|---|
| Color | Natural |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | Commercial MATE-N-LOK Series |
|---|
| Mating Products | A1402-ND - CONN RECEPT/CAP 4 POS MATE-N-LOKA1212-ND - CONN HEADER 4 POS TIN PCBA14374-ND - CONN HEADER 4POS VERT .200 TINA32182-ND - CONN HEADER PIN VERT 4POS GOLDA33355-ND - CONN HEADER PIN VERT 4POS TINA122356-ND - CONN HEADER 4POS R/A MATE-N-LOKA25420-ND - CONN HEADER PIN VERT 4POS TINA25422-ND - CONN HEADER PIN VERT 4POS TINA121326-ND - CONN HEADER 4POS R/A MATE-N-LOK172294-1-ND - CONN HEADER 4POS R/A IN-LINE PCBA1213-ND - CONN HEADER 4 POS GOLD PCBA14375-ND - CONN HEADER 4POS VERT .200 AUA25421-ND - CONN HEADER PIN VERT 4POS TINA32185-ND - CONN HEADER PIN VERT 4POS GOLD1-174804-1-ND - CONN PIN HEADER 4POS TIN1586515-3-ND - CONN HEADER 4POS MATE-N-LOK TIN |
|---|
| Associated Product | A1423-ND - CONN SOCKET 18-24AWG TIN CRIMPA25559TR-ND - CONN SOCKET 18-24AWG GOLD CRIMPA25559CT-ND - CONN SOCKET 18-24AWG GOLD CRIMPA1433-ND - CONN SOCKET 18-24AWG GOLD CRIMPA97888TR-ND - CONN SOCKET 20-14AWG TIN MNLA97888CT-ND - CONN SOCKET 20-14AWG TIN MNLA100727TR-ND - CONN SOCKET 24-18AWG M-N-L TINA100727CT-ND - CONN SOCKET 24-18AWG M-N-L TINA25555TR-ND - CONN SOCKET 18-24AWG TIN CRIMPA25555CT-ND - CONN SOCKET 18-24AWG TIN CRIMPA100716TR-ND - CONN SOCKET 20-14AWG M-N-L TINA100716CT-ND - CONN SOCKET 20-14AWG M-N-L TINA25562-ND - CONN SOCKET 14-20AWG TIN CRIMPA25559-ND - CONN SOCKET 18-24AWG GOLD CRIMPA1435-ND - CONN SOCKET 14-20AWG GOLD CRIMPA25567TR-ND - CONN SOCKET 16-18AWG TIN CRIMPA25567CT-ND - CONN SOCKET 16-18AWG TIN CRIMPA25550TR-ND - CONN SOCKET 22-30AWG TIN CRIMPA25550CT-ND - CONN SOCKET 22-30AWG TIN CRIMPA25570TR-ND - CONN SOCKET 16-18AWG TIN CRIMPA25570CT-ND - CONN SOCKET 16-18AWG TIN CRIMPA25548-ND - CONN SOCKET 22-30AWG TIN CRIMPA25550-ND - CONN SOCKET 22-30AWG TIN CRIMPA100717TR-ND - CONN SOCKET 20-14AWG M-N-L GOLDA100717CT-ND - CONN SOCKET 20-14AWG M-N-L GOLDA100901TR-ND - CONN SOCKET 14-20AWG MNLA100901CT-ND - CONN SOCKET 14-20AWG MNLA25548TR-ND - CONN SOCKET 22-30AWG TIN CRIMPA25548CT-ND - CONN SOCKET 22-30AWG TIN CRIMPA116372TR-ND - CONN SOCKET 24-18AWG M-N-LA100715TR-ND - CONN SOCKET 14-20 AWG CRIMPA100715CT-ND - CONN SOCKET 14-20 AWG CRIMPA25570-ND - CONN SOCKET 16-18AWG TIN CRIMPA116286TR-ND - CONTACT SOCKET 24-18AWG M-N-LA111152TR-ND - CONTACT SOCKET 30-22AWG GOLDA1433TR-ND - CONN SOCKET 18-24AWG GOLD CRIMPA1433CT-ND - CONN SOCKET 18-24AWG GOLD CRIMPA25565TR-ND - CONN SOCKET 14-20AWG GOLD CRIMPA25565CT-ND - CONN SOCKET 14-20AWG GOLD CRIMPA1421-ND - CONN SOCKET 14-20AWG TIN CRIMPA25555-ND - CONN SOCKET 18-24AWG TIN CRIMPA25565-ND - CONN SOCKET 14-20AWG GOLD CRIMPA25767-ND - CONN SOCKET 22-30AWG GOLD CRIMP |
|---|
| Other Names | 14804240A1431 |
|---|
