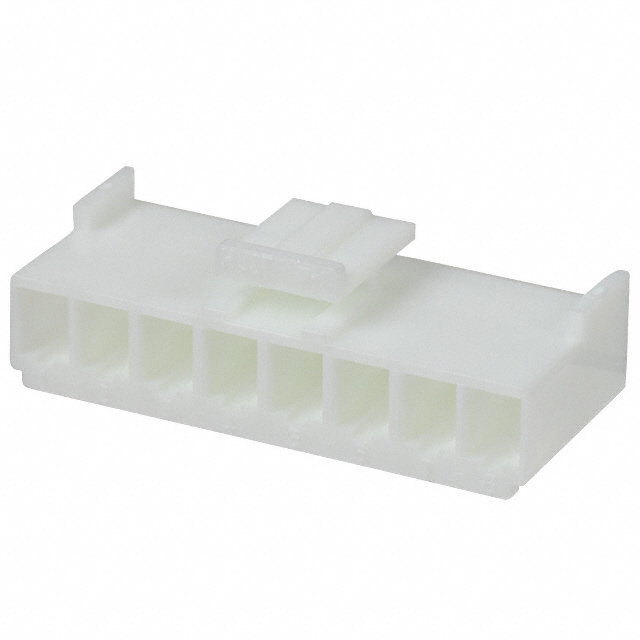

| Part Number | VHR-8N |
|---|
| Manufacturer | JST Sales America Inc. |
|---|
| Description | CONN HOUSING VH 8POS 3.96MM WHT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | VH |
|---|
| Family | Rectangular Connectors - Housings |
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 8 |
|---|
| Pitch | 0.156" (3.96mm) |
|---|
| Number of Rows | 1 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Contact Termination | Crimp |
|---|
| Fastening Type | Latch Lock |
|---|
| Color | Natural |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | VH Series |
|---|
| Mating Products | 455-1645-ND - CONN HEADER VH TOP 8POS 3.96MM455-1654-ND - CONN HEADER VH SIDE 8POS 3.96MM455-1206-ND - CONN HEADER VH TOP 8POS 3.96MM455-1230-ND - CONN HEADER VH SIDE 8POS 3.96MM |
|---|
| For Use With | 285-2007-ND - AC/DC CONVERTER 24V 100W285-2004-ND - AC/DC CONVERTER 5V 100W285-2219-ND - AC/DC CONVERTER 48V 300WQ658-ND - AC/DC CONVERTER 12V 125WQ659-ND - AC/DC CONVERTER 24V 125W285-2005-ND - AC/DC CONVERTER 12V 100W285-2008-ND - AC/DC CONVERTER 48V 100W285-2220-ND - AC/DC CONVERTER 24V 300W285-2 |
|---|
| Associated Product | 455-1133-2-ND - CONN TERM CRIMP VH/NV 18-22AWG455-1133-1-ND - CONN TERM CRIMP VH/NV 18-22AWG455-1319-2-ND - CONN TERM CRIMP VH 16-20AWG TIN455-1319-1-ND - CONN TERM CRIMP VH 16-20AWG TINSVH-21GH-P1.1-ND - CONN TERM CRIMP VH/NV 18-22AWG455-1132-2-ND - CONN TERM CRIMP VH/NV 18-22AWG455-1132-1-ND - CON |
|---|
| Other Names | (W)VHR-8N455-1168VHR8N |
|---|
