| Part Number | 1-390261-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

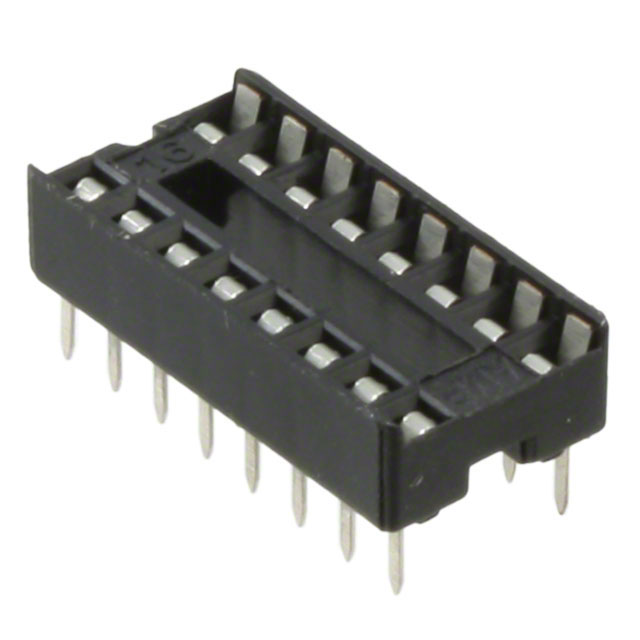

| Description | CONN IC DIP SOCKET 16POS TIN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| 3D Model |
1-390261-4.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tube |
|---|
| Type | DIP, 0.3" (7.62mm) Row Spacing |
|---|
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
|---|
| Pitch - Mating | 0.100" (2.54mm) |
|---|
| Contact Finish - Mating | Tin |
|---|
| Contact Finish Thickness - Mating | 60μin (1.52μm) |
|---|
| Contact Material - Mating | Phosphor Bronze |
|---|
| Mounting Type | Through Hole |
|---|
| Features | Open Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.100" (2.54mm) |
|---|
| Contact Finish - Post | Tin |
|---|
| Contact Finish Thickness - Post | 60μin (1.52μm) |
|---|
| Contact Material - Post | Phosphor Bronze |
|---|
| Housing Material | - |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Termination Post Length | 0.118" (3.00mm) |
|---|
| Material Flammability Rating | - |
|---|
| Current Rating | - |
|---|
| Contact Resistance | 30 mOhm |
|---|
| Other Names | 1-390261-4-ND13902614A100206 |
|---|
