| Part Number | 20020108-H061A01LF |
|---|
| Manufacturer | FCI |
|---|

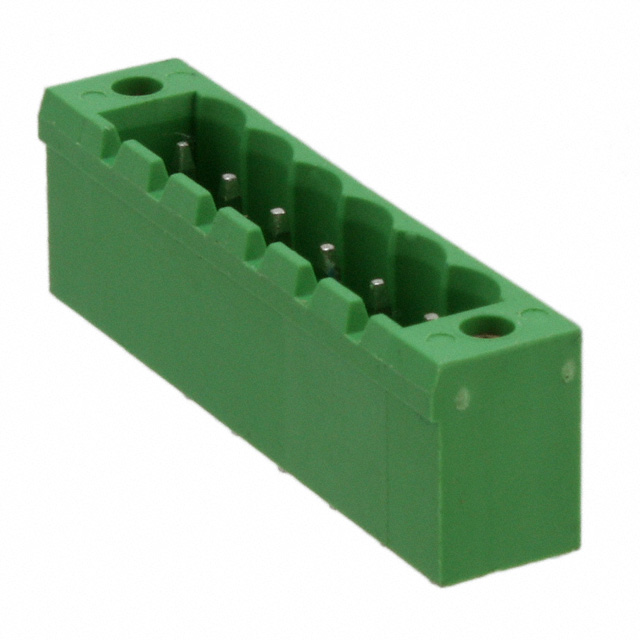

| Description | TERM BLOCK HDR 6POS VERT 5.08MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 06-508 |
|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
|---|
| Featured Product |
Signal and Power Terminal Blocks
|
|---|
| PCN Design/Specification |
Multiple Series Improvement 16/Feb/2012
Multiple Devices Design 28/Apr/2014
|
|---|
| PCN Part Number |
Anytek Integration 02/Apr/2015
|
|---|
| Standard Package | 240 |
|---|
| Packaging | Bulk |
|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
|---|
| Number of Positions | 6 |
|---|
| Positions Per Level | 6 |
|---|
| Number of Levels | 1 |
|---|
| Pitch | 0.200" (5.08mm) |
|---|
| Header Orientation | Vertical |
|---|
| Plug Wire Entry | - |
|---|
| Termination Style | Solder |
|---|
| Mounting Type | Through Hole |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 12A |
|---|
| Voltage - UL | 300V |
|---|
| Wire Gauge or Range - AWG | - |
|---|
| Wire Gauge or Range - mm2 | - |
|---|
| Color | Green |
|---|
| Operating Temperature | -40°C ~ 115°C |
|---|
| Contact Mating Finish | Tin |
|---|
| Features | Mating Flange |
|---|
| Mating Products | 609-4236-ND - TERM BLOCK PLUG 6POS STR 5.08MM609-4224-ND - TERM BLOCK PLUG 6POS STR 5.08MM609-4118-ND - TERM BLOCK PLUG 6POS STR 5.08MM609-4212-ND - TERM BLOCK PLUG 6POS 5.08MM609-4564-ND - TERM BLOCK PLUG 6POS STR 5.08MM609-4112-ND - TERM BLOCK PLUG 6POS 5.08MM |
|---|
| Associated Product | 609-4059-ND - CODING KEY SKT 5.00/5.08MM |
|---|
| Other Names | 20020108H061A01LF609-4124 |
|---|
