| Part Number | 0473370001 |
|---|
| Manufacturer | Molex, LLC |
|---|

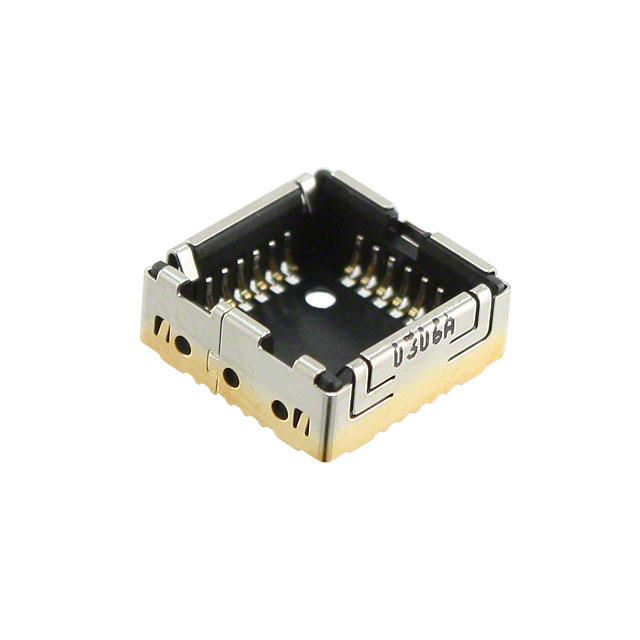

| Description | CONN CAM SOCKET 24POS GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 47337 |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| Video File |
Camera Sockets for Serial and Parallel Data Applications
|
|---|
| Featured Product |
SMIA Compliant Camera Sockets
|
|---|
| 3D Model |
47337-0001.stp
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Type | Camera Socket |
|---|
| Number of Positions or Pins (Grid) | 24 (4 x 6) |
|---|
| Pitch - Mating | 0.035" (0.90mm) |
|---|
| Contact Finish - Mating | Gold |
|---|
| Contact Finish Thickness - Mating | 12μin (0.30μm) |
|---|
| Contact Material - Mating | Copper Alloy |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Open Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.035" (0.90mm) |
|---|
| Contact Finish - Post | Gold |
|---|
| Contact Finish Thickness - Post | Flash |
|---|
| Contact Material - Post | Copper Alloy |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Operating Temperature | -55°C ~ 85°C |
|---|
| Termination Post Length | - |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | 0.5A |
|---|
| Contact Resistance | - |
|---|
| Associated Product | WM4072-ND - CONN SCKT COVER FOR CAMERA SCKT |
|---|
| Other Names | WM3289DKR |
|---|
