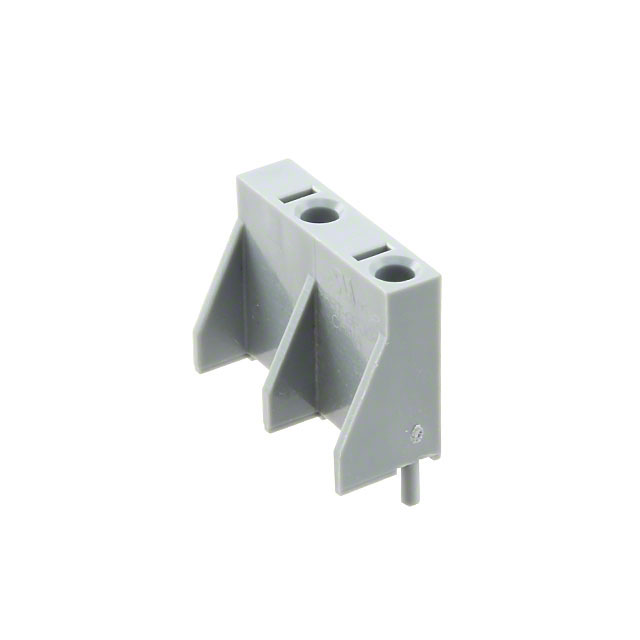

| Part Number | 1-2008552-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SCREWLESS |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Featured Product |
TE Connectivity - Vertical Screwless Wire Connectors
TE Conn-AMP & P&B & Alcoswitch - Intelligent Buildings
|
|---|
| 3D Model |
1-2008552-2.pdf
|
|---|
| Standard Package | 210 |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 2 |
|---|
| Pitch | 0.323" (8.20mm) |
|---|
| Mating Orientation | Vertical with Board |
|---|
| Current | 2A |
|---|
| Voltage | 600V |
|---|
| Wire Gauge | 18 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
|---|
| Features | - |
|---|
| Color | Gray |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Housing Material | Polybutylene Terephthalate (PBT) |
|---|
| Contact Material - Plating | Phosphor Bronze - Tin Plated |
|---|
| Clamp Material - Plating | - |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | - |
|---|
| Screw Thread | - |
|---|
| Other Names | A108576 |
|---|
