| Part Number | 20020004-C021B01LF |
|---|
| Manufacturer | FCI |
|---|

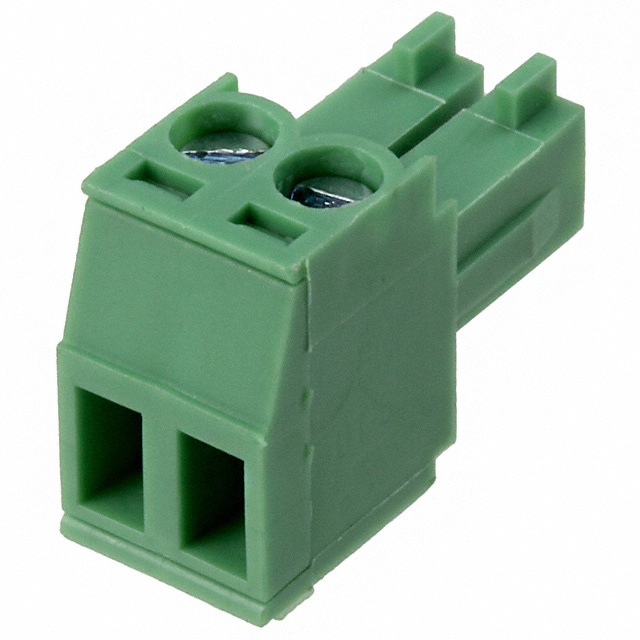

| Description | 350 TB PLG PLUG 180 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 01-350 |
|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
|---|
| Product Training Modules |
Terminal Blocks
|
|---|
| Featured Product |
Signal and Power Terminal Blocks
|
|---|
| PCN Design/Specification |
Multiple Devices Design 28/Apr/2014
|
|---|
| PCN Part Number |
Anytek Integration 02/Apr/2015
|
|---|
| Standard Package | 620 |
|---|
| Packaging | Bulk |
|---|
| Type | Plug, Female Sockets |
|---|
| Number of Positions | 2 |
|---|
| Positions Per Level | 2 |
|---|
| Number of Levels | 1 |
|---|
| Pitch | 0.138" (3.50mm) |
|---|
| Header Orientation | - |
|---|
| Plug Wire Entry | 180° |
|---|
| Termination Style | Screw - Rising Cage Clamp |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Current - IEC | - |
|---|
| Voltage - IEC | - |
|---|
| Current - UL | 10A |
|---|
| Voltage - UL | 300V |
|---|
| Wire Gauge or Range - AWG | 16-26 AWG |
|---|
| Wire Gauge or Range - mm2 | 0.5-1.5mm2 |
|---|
| Color | Green |
|---|
| Operating Temperature | -40°C ~ 115°C |
|---|
| Contact Mating Finish | Tin |
|---|
| Features | - |
|---|
| Online Catalog | 01-350 and 01-381 Series |
|---|
| Mating Products | 609-4981-ND - 350 TB PLG SKT STR TMT |
|---|
| Other Names | 20020004-C021B01LF-ND609-4727 |
|---|
