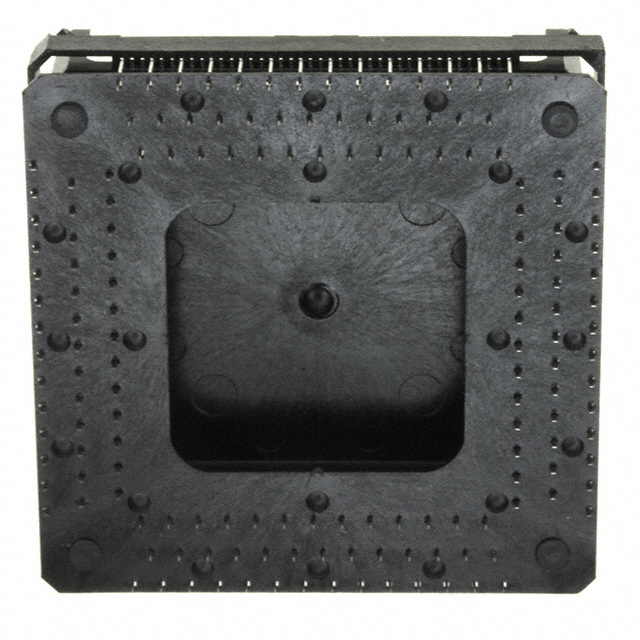

| Part Number | 822114-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET PQFP 160POS TIN-LEAD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Sockets for ICs, Transistors |
|---|
| 3D Model |
822114-4.pdf
|
|---|
| Standard Package | 14 |
|---|
| Packaging | Tube |
|---|
| Type | QFP |
|---|
| Number of Positions or Pins (Grid) | 160 (4 x 40) |
|---|
| Pitch - Mating | 0.050" (1.27mm) |
|---|
| Contact Finish - Mating | Tin-Lead |
|---|
| Contact Finish Thickness - Mating | 200μin (5.08μm) |
|---|
| Contact Material - Mating | Phosphor Bronze |
|---|
| Mounting Type | Through Hole |
|---|
| Features | Closed Frame |
|---|
| Termination | Solder |
|---|
| Pitch - Post | 0.050" (1.27mm) |
|---|
| Contact Finish - Post | Tin-Lead |
|---|
| Contact Finish Thickness - Post | 200μin (5.08μm) |
|---|
| Contact Material - Post | Phosphor Bronze |
|---|
| Housing Material | Liquid Crystal Polymer (LCP) |
|---|
| Operating Temperature | - |
|---|
| Termination Post Length | 0.135" (3.43mm) |
|---|
| Material Flammability Rating | UL94 V-0 |
|---|
| Current Rating | - |
|---|
| Contact Resistance | - |
|---|
| Online Catalog | Sockets for ICs, Transistors |
|---|
| Associated Product | A24838-ND - CONN SOCKET COVER FOR 160PQFP |
|---|
| Other Names | 822114-4-ND8221144A24828 |
|---|
