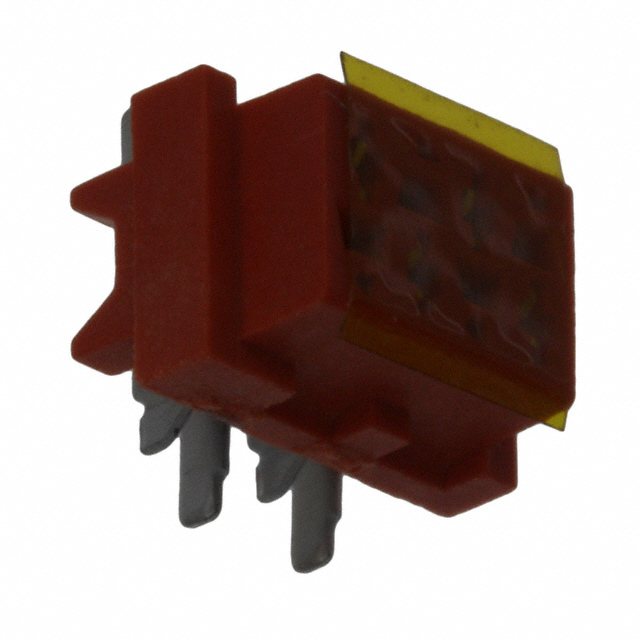

| Part Number | 7-188275-4 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN FMALE-ON-BRD 4POS VERT SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Micro-MaTch |
|---|
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
|---|
| Featured Product |
Micro-MaTch Connector Series
|
|---|
| 3D Model |
7-188275-4.pdf
|
|---|
| PCN Other |
Connectors Material 01/Apr/2014
SMD Connectors Material 11/May/2015
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 900 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 4 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination | Solder |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Contact Finish | Tin |
|---|
| Contact Finish Thickness | - |
|---|
| Color | Red |
|---|
| Online Catalog | Micro-MaTch Series |
|---|
| Mating Products | A116255TR-ND - CONN HEADER 4POS DL VERT SMD |
|---|
| Other Names | 71882754A99473TR |
|---|
