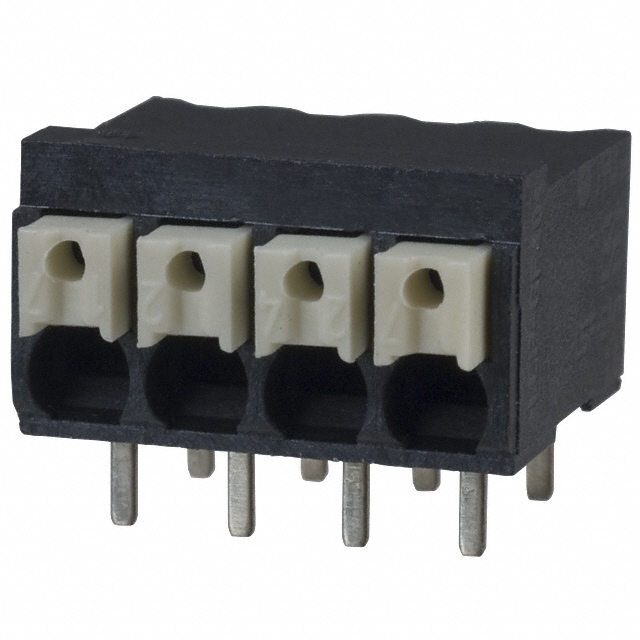

| Part Number | 1824440000 |
|---|
| Manufacturer | Weidmuller |
|---|
| Description | CONN TERM BLK 4POS 3.5MM R/A PCB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Omnimate LSF-SMT |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Standard Package | 37 |
|---|
| Packaging | Tube |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 4 |
|---|
| Pitch | 0.138" (3.50mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 12A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 16-24 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screwless - Push Button Clamp |
|---|
| Features | - |
|---|
| Color | Black |
|---|
| Operating Temperature | -50°C ~ 240°C |
|---|
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
|---|
| Contact Material - Plating | Copper Alloy - Tin Plated |
|---|
| Clamp Material - Plating | - |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | - |
|---|
| Screw Thread | - |
|---|
| Online Catalog | LSF-SMT Series |
|---|
| Other Names | 281-2022 |
|---|
