| Part Number | J0011D01BNL |
|---|
| Manufacturer | Pulse Electronics Corporation |
|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | PULSEJACK? J0 |
|---|
| Family | Modular Connectors - Jacks With Magnetics |
|---|
| Standard Package | 30 |
|---|
| Packaging | Tray |
|---|
| Connector Type | RJ45 |
|---|
| Number of Ports | 1 |
|---|
| Number of Rows | 1 |
|---|
| Applications | 10/100 Base-TX, AutoMDIX |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|

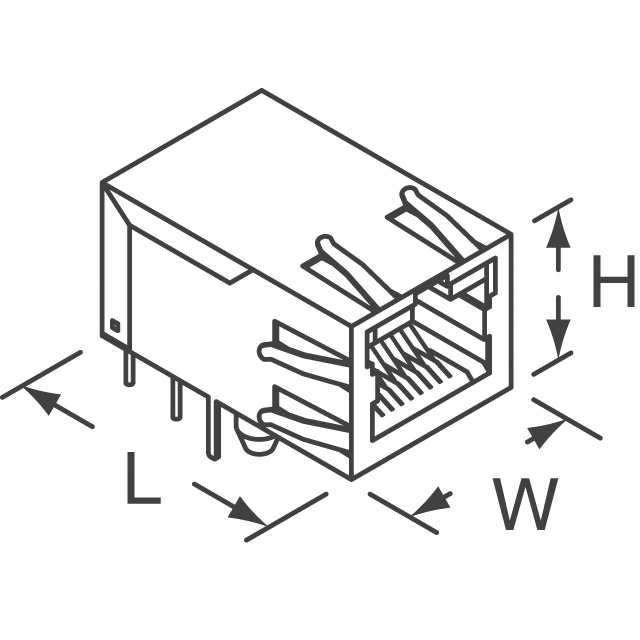

| Height Above Board | 0.545" (13.84mm) |
|---|
| LED Color | Green - Yellow |
|---|
| Number of Cores per Jack | 4 |
|---|
| Shielding | Shielded |
|---|
| Features | Board Guide |
|---|
| Tab Direction | Down |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 15μin (0.38μm) |
|---|
| Shield Material | Brass |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | 0°C ~ 70°C |
|---|
| Online Catalog | PULSEJACK? J0 and J2 Series |
|---|
| Other Names | 553-1483J0011D01BNL-ND |
|---|
