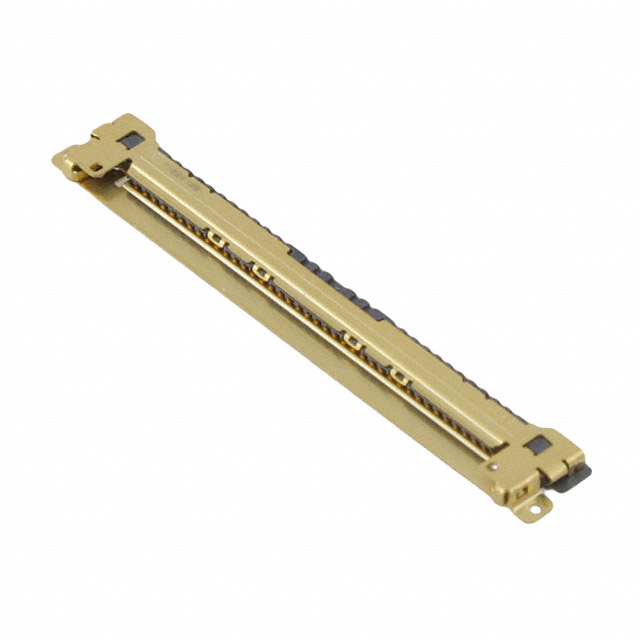

| Part Number | HD1S040HA1R6000 |
|---|
| Manufacturer | JAE Electronics |
|---|
| Description | HD1 SERIES LVDS RECEPTACLE |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | HD |
|---|
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
|---|
| Product Training Modules |
HD1 Series Board-to-Cable Type Connector
|
|---|
| Featured Product |
HD Series Connectors
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Outer Shroud Contact |
|---|
| Number of Positions | 40 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.020" (0.50mm) |
|---|
| Number of Rows | 1 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination | Solder |
|---|
| Fastening Type | Detent Lock |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Color | - |
|---|
| Online Catalog | HD Series |
|---|
| Mating Products | 670-2670-2-ND - HD1 SERIES LVDS PLUG670-2670-1-ND - HD1 SERIES LVDS PLUG |
|---|
| Other Names | 670-2669-1 |
|---|
