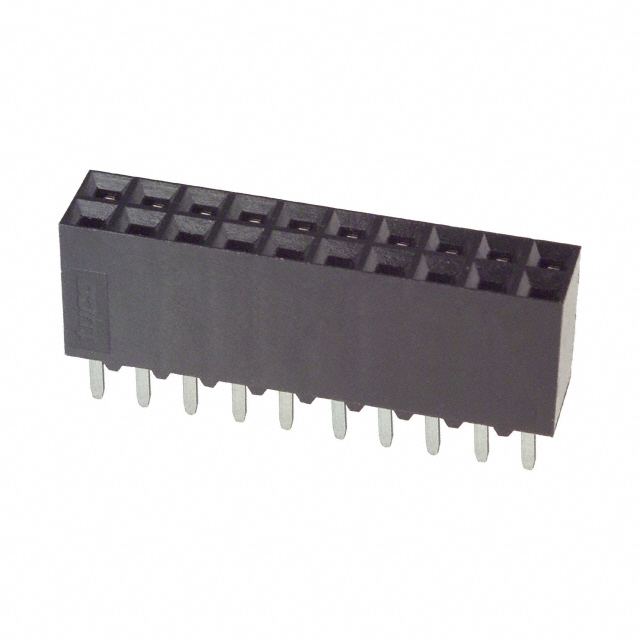

| Part Number | 6-534206-0 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN RECEPT 20POS .100 VERT DUAL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPMODU Mod II |
|---|
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
|---|
| Featured Product |
AMPMODU Connectors
|
|---|
| 3D Model |
6-534206-0.pdf
|
|---|
| Standard Package | 22 |
|---|
| Packaging | Tube |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 20 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | 0.100" (2.54mm) |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Solder |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Black |
|---|
| Online Catalog | AMPMODU Mod II Series |
|---|
| Mating Products | A26730-ND - CONN HEADER VERT .100 20POS 15AUA32556-ND - CONN HEADER VERT .100 20POS 30AUA26581-ND - CONN HEADER VERT 20POS .100 15AUA26580-ND - CONN HEADER VERT .100 20POS 30AUA33093-ND - CONN HEADER R/A .100 20POS 15AUA33092-ND - CONN HEADER R/A .100 20POS 30AUA26729-ND - CONN HEADER VERT .100 20PO |
|---|
| Other Names | 65342060A32941 |
|---|
