| Part Number | PHR-2 |
|---|
| Manufacturer | JST Sales America Inc. |
|---|

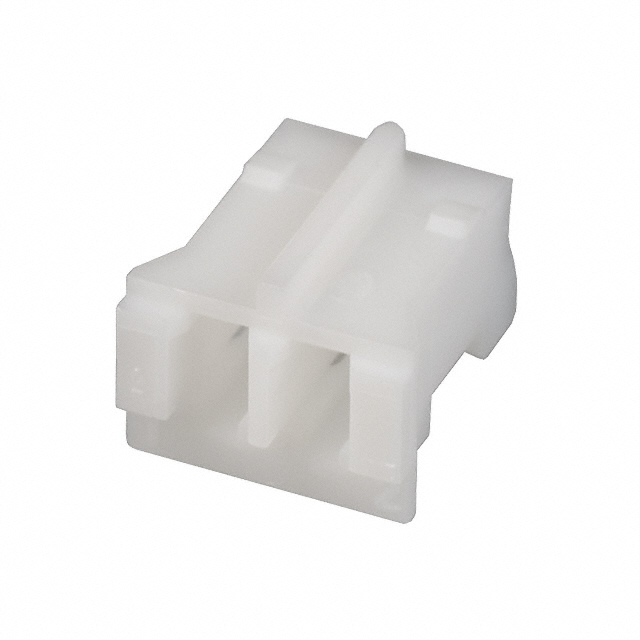

| Description | CONN HOUSING PH 2POS 2MM WHITE |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | PH |
|---|
| Family | Rectangular Connectors - Housings |
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 2 |
|---|
| Pitch | 0.079" (2.00mm) |
|---|
| Number of Rows | 1 |
|---|
| Row Spacing | - |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Contact Termination | Crimp |
|---|
| Fastening Type | Detent Lock |
|---|
| Color | Natural |
|---|
| Features | - |
|---|
| Note | Contacts Not Provided |
|---|
| Online Catalog | PH Series |
|---|
| Mating Products | 455-1704-ND - CONN HEADER PH TOP 2POS 2MM455-1719-ND - CONN HEADER PH SIDE 2POS 2MM455-1749-2-ND - CONN HEADER PH SIDE 2POS 2MM SMD455-1749-1-ND - CONN HEADER PH SIDE 2POS 2MM SMD455-1749-6-ND - CONN HEADER PH SIDE 2POS 2MM SMD455-1734-2-ND - CONN HEADER PH TOP 2POS 2MM SMD455-1734-1-ND - CONN HEADE |
|---|
| Associated Product | 455-2148-2-ND - CONN TERMINAL 28-24AWG TIN455-2148-1-ND - CONN TERMINAL 28-24AWG TIN455-1318-2-ND - CONN TERM CRIMP PH 28-32AWG TIN455-1318-1-ND - CONN TERM CRIMP PH 28-32AWG TIN455-1127-2-ND - CONN TERM CRIMP PH 24-30AWG455-1127-1-ND - CONN TERM CRIMP PH 24-30AWGSPH-002GW-P0.5L-ND - CONN TERM CRIMP |
|---|
| Other Names | 455-1165PHR-2(P);PHR2 |
|---|
