| Part Number | 5-534206-8 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

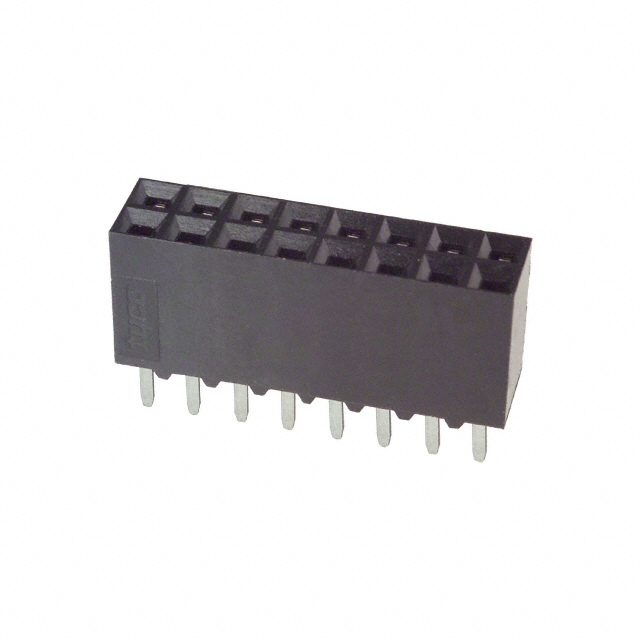

| Description | CONN RECEPT 16POS .100 VERT DUAL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPMODU Mod II |
|---|
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
|---|
| Featured Product |
AMPMODU Connectors
|
|---|
| 3D Model |
5-534206-8.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 28 |
|---|
| Packaging | Tube |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 16 |
|---|
| Number of Positions Loaded | All |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | 0.100" (2.54mm) |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Solder |
|---|
| Fastening Type | - |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Black |
|---|
| Online Catalog | AMPMODU Mod II Series |
|---|
| Other Names | 55342068A32939 |
|---|
