| Part Number | 1658621-5 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

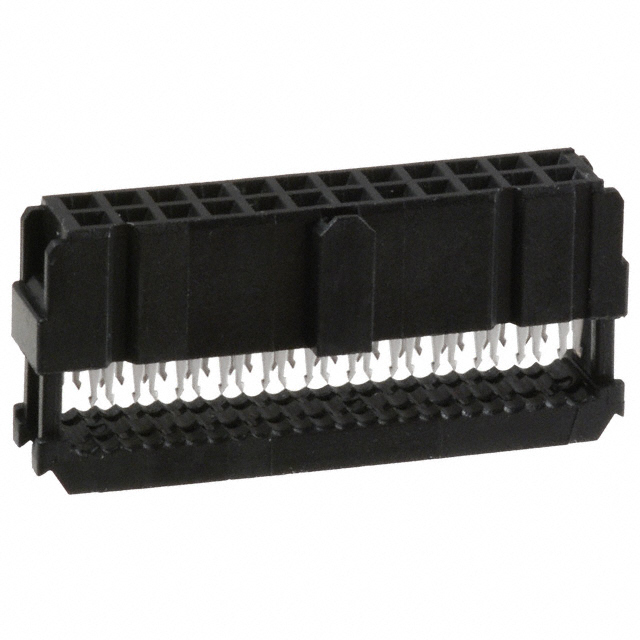

| Description | CONN IDC SKT 24POS W/POL 15 GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMP-Latch |
|---|
| Family | Rectangular Connectors - Free Hanging, Panel Mount |
|---|
| Product Training Modules |
AMP - Latch Overview
|
|---|
| Featured Product |
AMP-LATCH Ribbon Cable Connectors
|
|---|
| 3D Model |
1658621-5.pdf
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 24 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | 0.100" (2.54mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Fastening Type | - |
|---|
| Cable Termination | IDC |
|---|
| Wire Type | Ribbon Cable |
|---|
| Wire Gauge | 26-28 AWG |
|---|
| Features | Feed Through, Polarizing Key |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 15μin (0.38μm) |
|---|
| Color | Black |
|---|
| Online Catalog | AMP-Latch Series |
|---|
| Mating Products | A97492-ND - CONN HEADER LOPRO STR 24POS GOLDAHK24H-ND - CONN HEADER VERT 24POS .100 15AUAHC24H-ND - CONN HEADER RT/A 24POS .100 GOLDAHL24B-ND - CONN HEADER VERT 24POS .100 GOLDAHE24H-ND - CONN HEADER VERT 24POS .100 GOLDAHB24H-ND - CONN HEADER RT/A 24POS .100 GOLDAHK24B-ND - CONN HEADER VERT 24POS . |
|---|
| Assembly | A1CXH-2436G-ND - IDC CABLE - AKC24H/AE24G/XA1DXH-2436G-ND - IDC CABLE - AKR24H/AE24G/XA1CXH-2436M-ND - IDC CABLE - AKC24H/AE24M/XA1DXH-2436M-ND - IDC CABLE - AKR24H/AE24M/XA3CCH-2406G-ND - IDC CABLE - AKC24H/AE24G/AKC24HA3CCH-2406M-ND - IDC CABLE - AKC24H/AE24M/AKC24HA3CCH-2418G-ND - IDC CABLE - AKC |
|---|
| Other Names | 16586215AKC24H |
|---|
