| Part Number | 1682 |
|---|
| Manufacturer | Keystone Electronics |
|---|

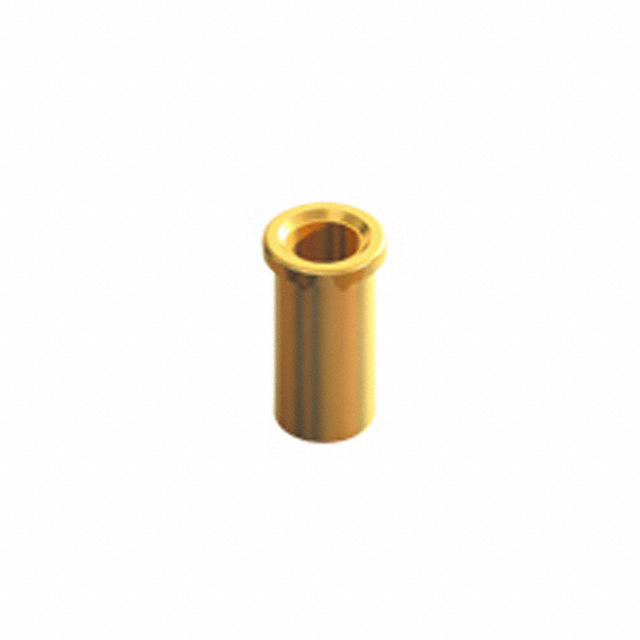

| Description | JACK .048-.064".213"L SLD MNT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Tail Type | No Tail |
|---|
| Termination | Solder |
|---|
| Length - Overall | 0.213" (5.41mm) |
|---|
| Accepts Pin Diameter | 0.048" ~ 0.064" (1.22mm ~ 1.63mm) |
|---|
| Mounting Hole Diameter | 0.102" (2.59mm) |
|---|
| Pin Hole Diameter | - |
|---|
| Flange Diameter | 0.120" (3.05mm) |
|---|
| Tail Diameter | - |
|---|
| Socket Depth | 0.180" (4.57mm) |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 10μin (0.25μm) |
|---|
| Features | - |
|---|
| Operating Temperature | - |
|---|
| Board Thickness | - |
|---|
| Insertion Force | - |
|---|
| Other Names | 1682K1682K-ND36-1682 |
|---|
