| Part Number | L712RAS |
|---|
| Manufacturer | Switchcraft Inc. |
|---|

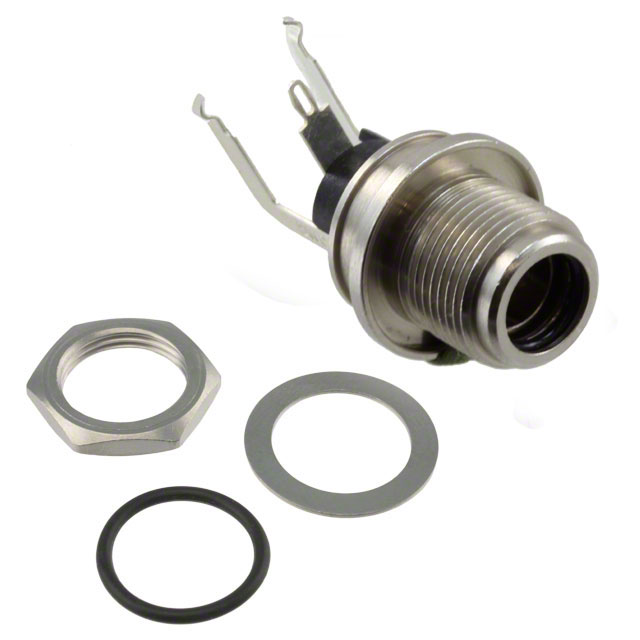

| Description | CONN PWR JACK R/A 2.5MM SEALED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Barrel - Power Connectors |
|---|
| Product Training Modules |
Sealed Power Plugs and Jacks
|
|---|
| Featured Product |
Sealed Power Plugs and Jacks
|
|---|
| PCN Design/Specification |
Bushing Flange 01/Oct/2012
|
|---|
| Standard Package | 1 |
|---|
| Connector Type | Jack |
|---|
| Gender | Male |
|---|
| Plug/Mating Plug Diameter | 2.5mm ID, 5.5mm OD |
|---|
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
|---|
| Internal Switch(s) | Single Switch, Normally Closed |
|---|
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Shielding | Unshielded |
|---|
| Features | IP68, Mounting Hardware, Thread Lock |
|---|
| Color | Silver |
|---|
| Voltage - Rated | 30VDC |
|---|
| Current Rating | 5A |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Material - Plating | Nickel |
|---|
| Housing Color | Black |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | - |
|---|
| Online Catalog | Switchcraft Inc |
|---|
| Mating Products | SC1148-ND - CONN PLUG MINI PWR 2COND LOCKINGSC1383-ND - CONN PWR PLUG SEALED 2.5MMSC1381-ND - CONN PWR PLUG SEALED 2.5MMSC1382-ND - CONN PWR PLUG SEALED 2.5MM |
|---|
| Associated Product | SC1396-ND - POWER JACK SEAL CAP |
|---|
| Other Names | SC1394 |
|---|
