| Part Number | 3240033 |
|---|
| Manufacturer | Phoenix Contact |
|---|

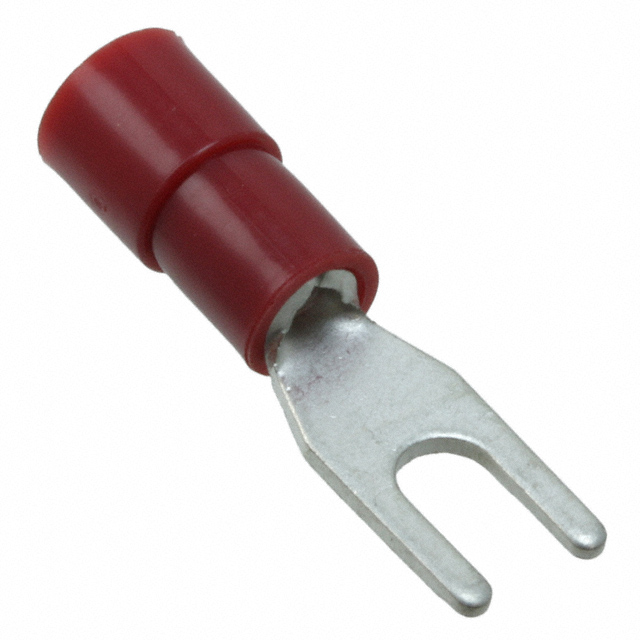

| Description | FORK CABLE LUG |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - Spade Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | Standard |
|---|
| Stud/Tab Size | M3.5 Stud |
|---|
| Width - Outer Edges | 0.224" (5.70mm) |
|---|
| Length - Overall | 0.866" (22.00mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Termination | Crimp |
|---|
| Wire Gauge | 16-20 AWG |
|---|
| Insulation | Insulated |
|---|
| Features | - |
|---|
| Color | Red |
|---|
| Contact Finish | Tin |
|---|
| Contact Material | Copper |
|---|
| Insulation Diameter | - |
|---|
| Material - Insulation | - |
|---|
| Length - Ring Center to Termination | - |
|---|
| Length - Termination | 0.413" (10.50mm) |
|---|
| Tongue Inside Opening | 0.146" (3.71mm) |
|---|
| Online Catalog | CLIPLINE Series |
|---|
| Other Names | 277-111303240033-NDC-FCI 1 5/M3 5 |
|---|
