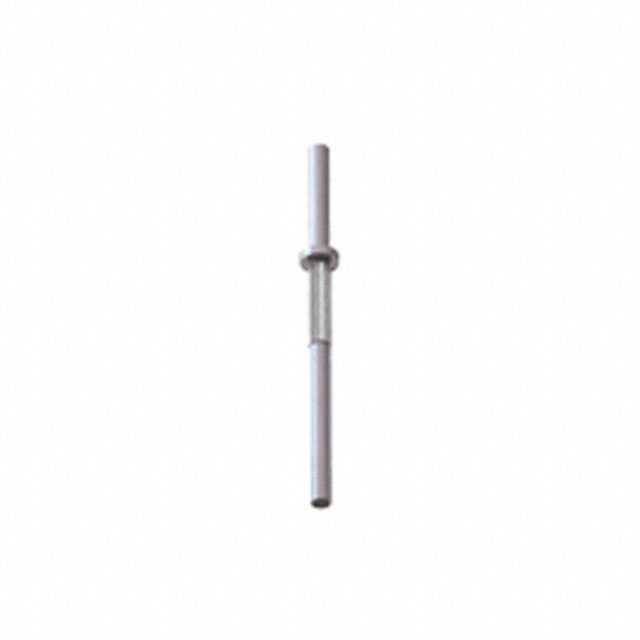

| Part Number | 1218 |
|---|
| Manufacturer | Keystone Electronics |
|---|
| Description | CONN PC PIN CIRC 0.040DIA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Terminals - PC Pin, Single Post Connectors |
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Terminal Type | PC Pin |
|---|
| Terminal Style | Double End |
|---|
| Pin Size - Above Flange | 0.040" (1.02mm) Dia |
|---|
| Pin Size - Below Flange | 0.040" (1.02mm) Dia |
|---|
| Length Above Flange | 0.250" (6.35mm) |
|---|
| Length Below Flange | 0.567" (14.40mm) |
|---|
| Length - Overall | 0.832" (21.13mm) |
|---|
| Flange Diameter | 0.080" (2.03mm) |
|---|
| Mounting Hole Diameter | 0.043" (1.09mm) |
|---|
| Mounting Type | Through Hole |
|---|
| Termination | Press-Fit, Knurled |
|---|
| Insulation | Non-Insulated |
|---|
| Board Thickness | - |
|---|
| Contact Material | Nickel Silver |
|---|
| Contact Finish | - |
|---|
| Contact Finish Thickness | - |
|---|
| Material - Insulation | - |
|---|
| Insulation Color | - |
|---|
| Other Names | 1218K1218K-ND36-1218 |
|---|
