| Part Number | 1658622-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

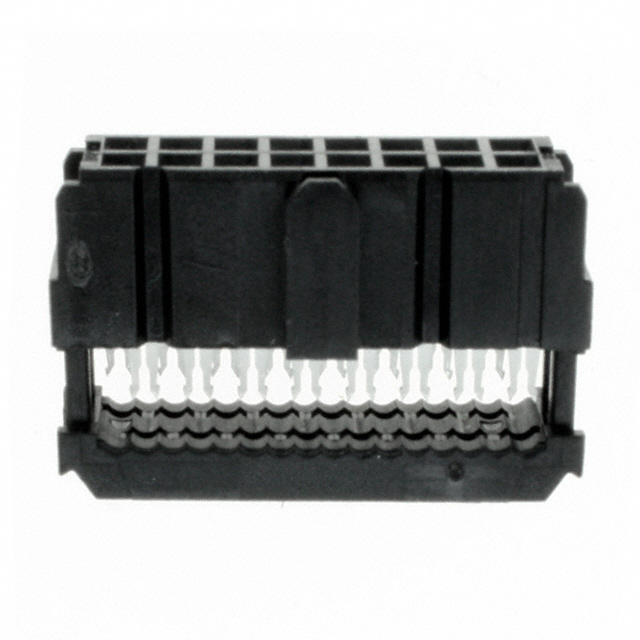

| Description | CONN IDC SKT 16POS W/POL GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMP-Latch |
|---|
| Family | Rectangular Connectors - Free Hanging, Panel Mount |
|---|
| Product Training Modules |
AMP - Latch Overview
|
|---|
| Featured Product |
AMP-LATCH Ribbon Cable Connectors
|
|---|
| 3D Model |
1658622-3.pdf
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle |
|---|
| Contact Type | Female Socket |
|---|
| Number of Positions | 16 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Number of Rows | 2 |
|---|
| Row Spacing | 0.100" (2.54mm) |
|---|
| Mounting Type | Free Hanging (In-Line) |
|---|
| Fastening Type | - |
|---|
| Cable Termination | IDC |
|---|
| Wire Type | Ribbon Cable |
|---|
| Wire Gauge | 26-28 AWG |
|---|
| Features | Feed Through, Polarizing Key |
|---|
| Contact Finish | Gold or Gold-Palladium |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Color | Black |
|---|
| Online Catalog | AMP-Latch Series |
|---|
| Mating Products | A33163-ND - CONN HEADER LOPRO STR 16POS GOLDAHS16H-ND - CONN HEADER VERT 16POS .100 GOLDA33164-ND - CONN HEADER LOPRO STR 16POS GOLDAHK16H-ND - CONN HEADER VERT 16POS .100 15AUAHB16H-ND - CONN HEADER RT/A 16POS .100 GOLDAHE16H-ND - CONN HEADER VERT 16POS .100 GOLDAHC16L-ND - CONN HEADER RT/A 16POS . |
|---|
| For Use With | 811-1945-ND - AC/DC CONVERTER 12V 1200W811-1946-ND - AC/DC CONVERTER 48V 1200W |
|---|
| Associated Product | ASSR16-ND - STRAIN RELIEF 16POS SOCKET CONN |
|---|
| Assembly | A1AXB-1636G-ND - IDC CABLE- ASC16B/AE16G/XA3CCB-1606G-ND - IDC CABLE- AKC16B/AE16G/AKC16BA3AAB-1606G-ND - IDC CABLE- ASC16B/AE16G/ASC16BA1CXB-1636G-ND - IDC CABLE- AKC16B/AE16G/XA1AXB-1636M-ND - IDC CABLE- ASC16B/AE16M/XA3CCB-1606M-ND - IDC CABLE- AKC16B/AE16M/AKC16BA3AAB-1606M-ND - IDC CABLE- ASC16 |
|---|
| Other Names | 16586223AKC16BAKN16BAKN16B-ND |
|---|
