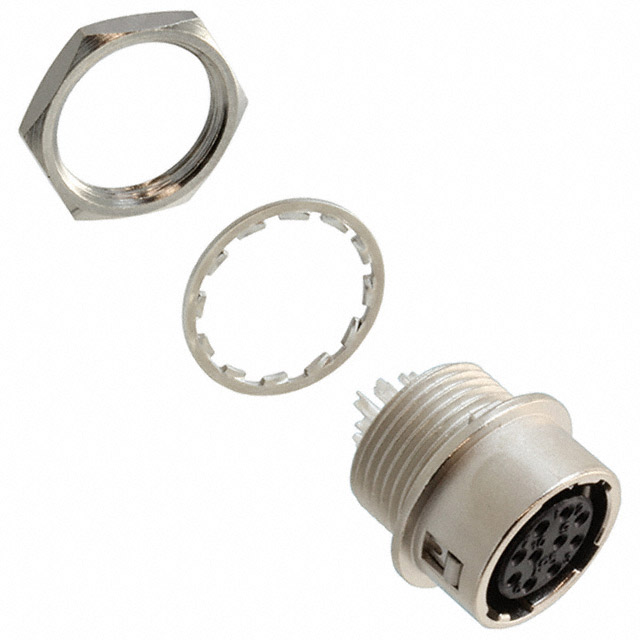

| Part Number | HR10A-10R-10S(71) |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | HR10A, REC. 10 POS. W/SOCKET |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | HR10A |
|---|
| Family | Circular Connectors |
|---|
| Standard Package | 20 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 10 |
|---|
| Shell Size - Insert | 10 |
|---|
| Shell Size, MIL | - |
|---|
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
|---|
| Termination | Solder Cup |
|---|
| Fastening Type | Push-Pull |
|---|
| Orientation | Keyed |
|---|
| Ingress Protection | - |
|---|
| Shell Material, Finish | Brass and Zinc, Nickel Plated |
|---|
| Contact Finish | Silver |
|---|
| Features | - |
|---|
| Contact Finish Thickness | - |
|---|
| Current Rating | 2A |
|---|
| Voltage - Rated | 100VAC |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Online Catalog | HR10A Series |
|---|
| Mating Products | HR1633-ND - CIRCULAR CONN 10 POS W/PINHR1672-ND - CONN HR10A PLUG 10POS MALEHR10A-10PB-10P(73)-ND - CONN PLUG 10POS INLINE PIN |
|---|
| Associated Product | HR349-ND - CONN DUST CAP FOR 10-12POS RECPTHR10A-10R-W-ND - CONN LOCKWASHER SZ 10HR10A-10R-N-ND - CONN HEX NUT SZ 10 |
|---|
| Other Names | *HR10A-10R-10S(71)HR10A10R10S71HR1637 |
|---|
