| Part Number | 3595 |
|---|---|
| Manufacturer | Keystone Electronics |

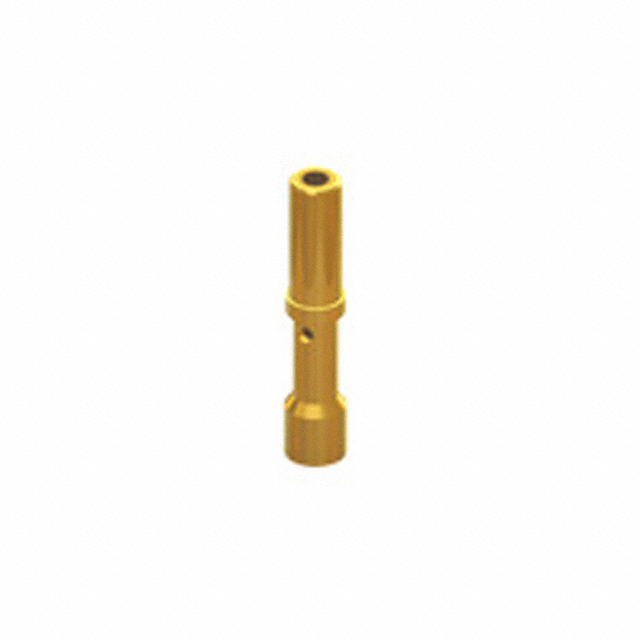

| Description | JACK .032-.046" BARREL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
3595
-
- USD 1.69
Product Details
| Part Number | 3595 |
|---|---|
| Manufacturer | Keystone Electronics |
| Description | JACK .032-.046" BARREL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Connectors, Interconnects |
| Series | - |
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
| Standard Package | 1 |
| Packaging | Bulk |
| Tail Type | No Tail |
| Termination | Crimp |
| Length - Overall | 0.530" (13.46mm) |
| Accepts Pin Diameter | 0.032" ~ 0.046" (0.81mm ~ 1.17mm) |
| Mounting Hole Diameter | - |
| Pin Hole Diameter | - |
| Flange Diameter | - |
| Tail Diameter | - |
| Socket Depth | 0.200" (5.08mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Features | - |
| Operating Temperature | - |
| Board Thickness | - |
| Insertion Force | - |
| Other Names | 3595K3595K-ND36-3595 |
