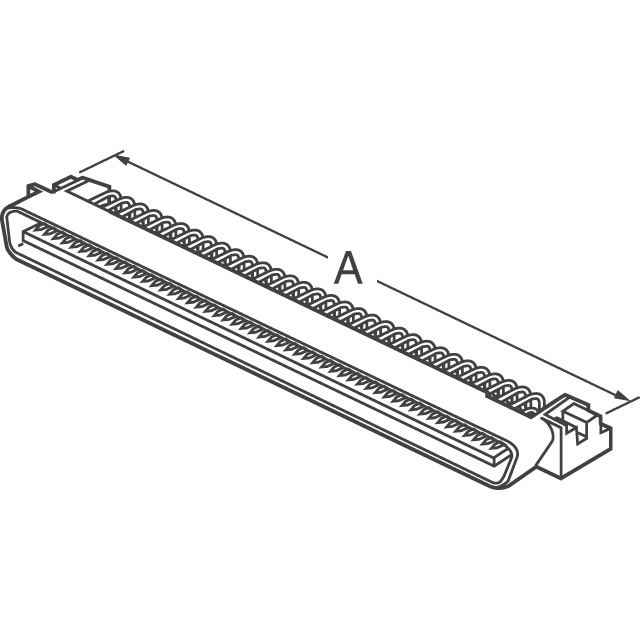

| Part Number | 1734099-8 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN PLUG 80POS .050" RT ANG |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | CHAMP .050 I |
|---|
| Family | D-Shaped Connectors - Centronics |
|---|
| 3D Model |
1734099-8.pdf
1734099-8.igs
1734099-8.stp
|
|---|
| PCN Other |
Multiple Devices Material 24/Jul/2015
|
|---|
| Standard Package | 21 |
|---|
| Connector Style | Center Strip Contacts |
|---|
| Connector Type | Plug |
|---|
| Number of Positions | 80 |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Flange Feature | - |
|---|
| Type | Board to Board |
|---|
| Features | Board Lock |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Mating Products | A33469-ND - RCPT ASSY,R/A,CHAMP 050,80 POSA31782-ND - CONN RCPT 80POS .050" CHAMP GOLD2-1734331-1-ND - CONN RCPT 80POS VERT .050 T/H1734101-9-ND - CONN RCPT 80POS VERT .050 T/H1734037-2-ND - CONN CHAMP RCPT 80POS .050 R/A |
|---|
| Other Names | 1734099-8-NDA97695 |
|---|
